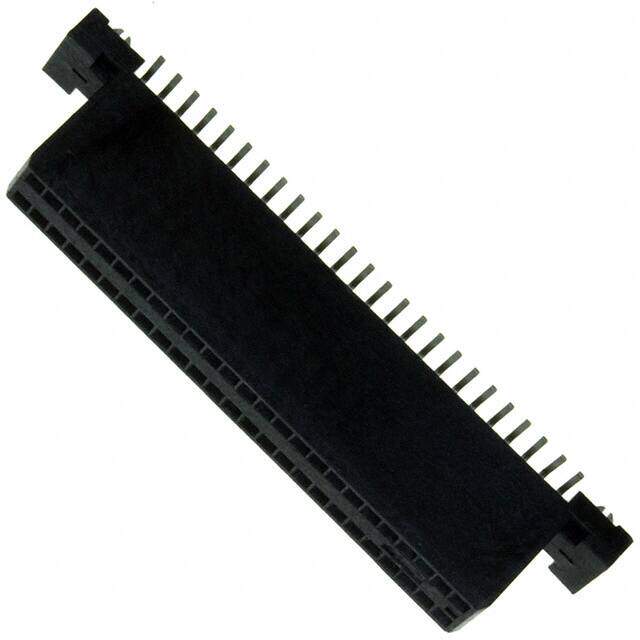

5-104550-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 50POS .050" GOLD SMD
PDF
/
Buying Options
Total Price: USD $8.83
Unit Price: USD $8.8264
≥1 USD $8.8264
≥10 USD $8.640922
≥100 USD $8.091688
Inventory: 775
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyphthalamide (PPA)
Housing Material Thermoplastic
PCB Mount Retention With
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2006
Series AMPMODU System 50
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 50
Number of Rows 2
Voltage - Rated 30VAC
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 50
Orientation Vertical
Depth 5.02mm
Insulation Height 0.370 9.40mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Number Of PCB Rows 2
Lead Pitch 1.27mm
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.198 inch
UL Flammability Code 94V-0
Housing Color Black
Operating Supply Voltage 30V
Rated Current (Signal) 3.6A
Contact Resistance 15mOhm
Insulation Resistance 5GOhm
Mating Contact Pitch 0.05 inch
ELV Compliant
Max Voltage Rating (AC) 30V
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 3.81 mm
Insertion Force-Max 1.39 N
Stackable No
Dimensions
Height 9.398mm
Length 39.21mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Stack Height (Mating) 11.94mm 13.08mm
PCB Thickness 1.57mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
