5-104078-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

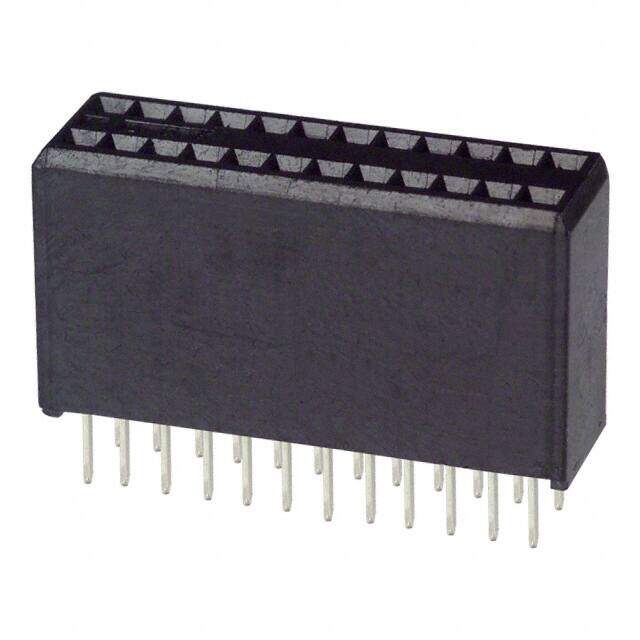

CONN RECEPT 24POS VERT DUAL 30AU
PDF
/
Buying Options
Total Price: USD $3.92
Unit Price: USD $3.9248
≥1 USD $3.9248
≥10 USD $3.351973
≥100 USD $3.172743
Inventory: 1602
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 11.43mm 12.57mm
Length - Tail 2.54mm
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 16.35mm
Height 8.89mm
Technical
Contact Current Rating 4A
Insertion Force-Max 1.39 N
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 30V
ELV Compliant
Mating Contact Pitch 0.05 inch
Insulation Resistance 5GOhm
Contact Resistance 15mOhm
Operating Supply Voltage 30V
Lead Length 2.54mm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.198 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.350 8.89mm
Depth 5.02mm
Orientation Vertical
Current Rating (Amps) 1A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Voltage - Rated 30VAC
Number of Rows 2
Number of Positions 24
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series AMPMODU System 50
Published 2006
Packaging Tube
Operating Temperature -65°C~105°C
Physical
PCB Mount Retention With
Housing Material Thermoplastic
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
