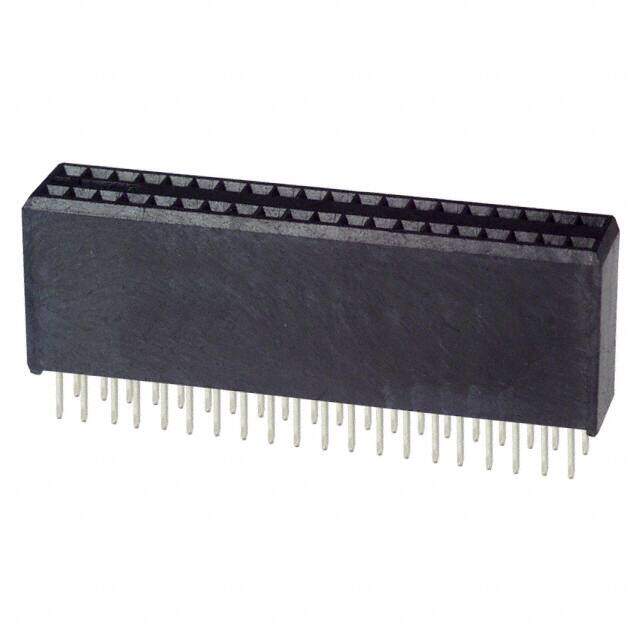

5-104078-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECEPT 40POS .050 STR GOLD
PDF
/
Buying Options
Total Price: USD $6.07
Unit Price: USD $6.072
≥1 USD $6.072
≥10 USD $5.49076
≥100 USD $5.114824
Inventory: 1267
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount, Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic, Glass Filled
Housing Material Thermoplastic
PCB Mounting Orientation Vertical
PCB Mount Retention With
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2008
Series AMPMODU System 50
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 40
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
Gender Receptacle
Voltage - Rated 30VAC
Fastening Type Push-Pull
Voltage - Rated DC 30V
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Pitch 1.27mm
Orientation Vertical
Depth 5.02mm
Insulation Height 0.350 8.89mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.100 2.54mm
Shrouding No
Lead Pitch 1.27mm
Number of Contacts 40
Contact Finish - Post Tin
Housing Color Black
Lead Length 2.54mm
Operating Supply Voltage 30V
Insulation Resistance 5GOhm
ELV Compliant
Max Voltage Rating (AC) 30V
Plating Gold
Contact Current Rating 4A
Dimensions
Height 8.89mm
Length 26.51mm
Width 5.03mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Tail 2.54mm
Stack Height (Mating) 11.43mm 12.57mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
