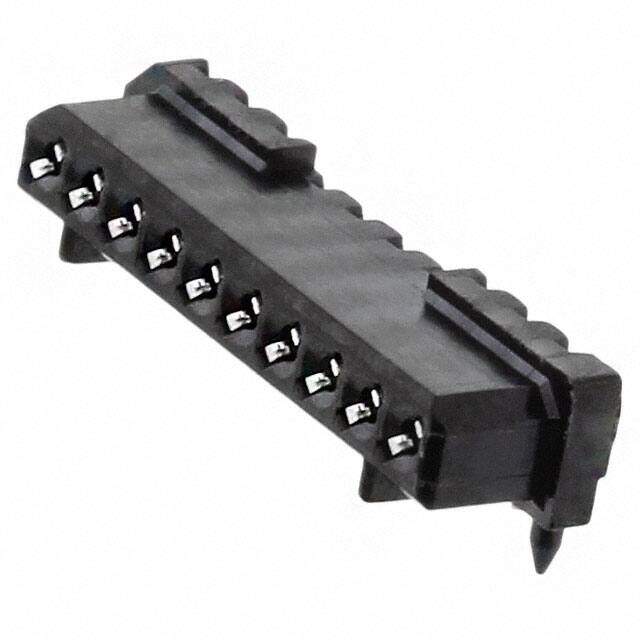

4-175637-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Board to Board & Mezzanine Connectors 1.25FP R10 SL B N TR
PDF
/
Inventory: 9827
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Material Bronze
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Circular
Housing Material Polyphenylene
Technical
Operating Temperature -30°C~105°C
Packaging Tape & Reel (TR)
Published 2009
Series Fine Pitch
JESD-609 Code e3
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 10
Number of Rows 1
Voltage - Rated 50V
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 0.5A
Total Number of Contacts 10
Orientation Right Angle
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.049 1.25mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.549 inch
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Contact Gender FEMALE
UL Flammability Code 94V-0
Insulation Resistance 500000000Ohm
Mating Contact Pitch 0.049 inch
ELV Compliant
Polarization Key HOUSING SIDE
Dielectric Withstanding Voltage 500VDC V
Dimensions
Plating Thickness 30μin
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
