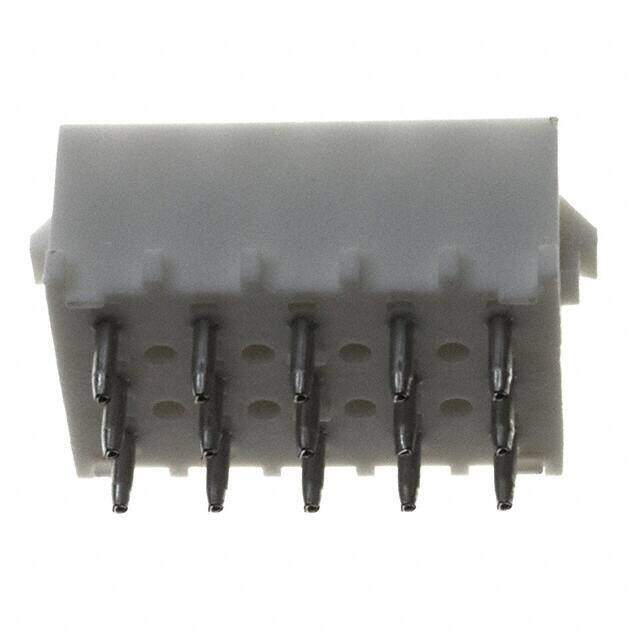

350837-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HEADER 15POS VERT .250 GOLD
PDF
/
Buying Options
Total Price: USD $10.85
Unit Price: USD $10.846485
≥1 USD $10.846485
≥10 USD $10.232535
≥100 USD $9.653335
≥500 USD $9.106918
≥1000 USD $8.591435
Inventory: 3520
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.57mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 2.54μm
Width 20.32mm
Length 33.02mm
Height 13.97mm
Technical
VDE Tested Yes
Contact Retention Without
Circuit Application Power
Contact Current Rating 12A
Sealable No
Number of Ports 1
Max Voltage Rating (AC) 600V
ELV Compliant
Operating Supply Voltage 600V
Empty Shell NO
Housing Color Natural, White
UL Flammability Code 94V-0
Contact Gender Female
Contact Finish - Post Tin
Number of Contacts 15
Lead Pitch 6.35mm
Contact Length - Post 0.215 5.46mm
Row Spacing - Mating 0.250 (6.35mm)
Approval Agency CSA
Insulation Color Natural
Pitch - Mating 0.250 6.35mm
Current Rating 19A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.550 13.97mm
Depth 20.32mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Voltage - Rated 600V
Number of Rows 3
Color White
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Universal MATE-N-LOK
Published 2008
Packaging Bulk
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 15 Weeks
