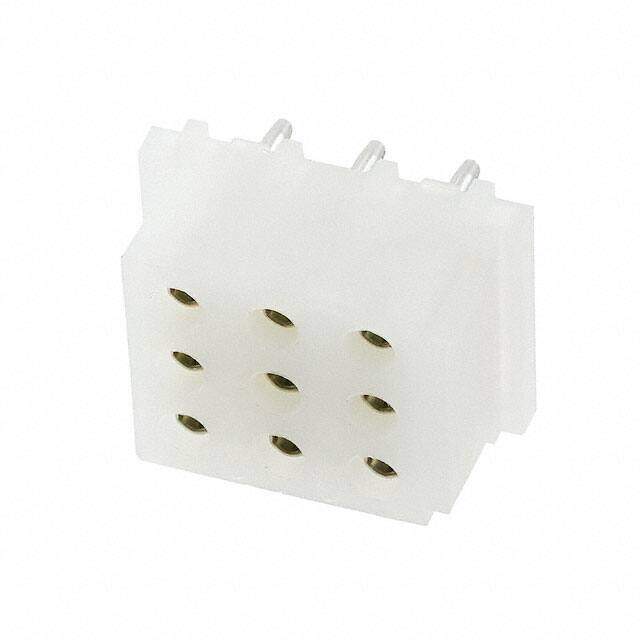

350577-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Pin & Socket Connectors 9P CMNL HDR ASY NATL
PDF
/
Inventory: 6669
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
PCB Thickness 3.18mm
Length - Tail 5.5626mm
Width 16.383mm
Length 24.13mm
Height 11.938mm
Technical
VDE Tested Yes
Mating Alignment With
Mating Retention Without
Circuit Application Power
Contact Current Rating 10A
Sealable No
Number of Ports 1
Max Voltage Rating (AC) 250V
ELV Compliant
Operating Supply Voltage 250V
Empty Shell NO
Housing Color Natural
Number of Contacts 9
Contact Length - Post 0.220 5.58mm
Row Spacing - Mating 0.202 (5.13mm)
Approval Agency UL
Pitch - Mating 0.240 6.10mm
Current Rating 13A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.470 11.94mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 250V
Gender Receptacle
Number of Rows 3
Min Operating Temperature -30°C
Max Operating Temperature 105°C
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Commercial MATE-N-LOK
Published 1998
Packaging Bulk
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 20 Weeks
