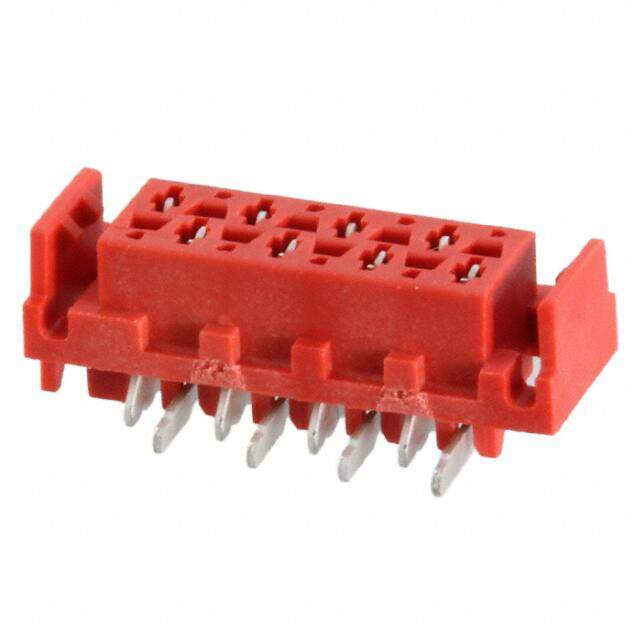

338069-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings FOB 8 POS TOP ENTRY SMT
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.6104
≥1 USD $1.6104
≥10 USD $1.47312
≥100 USD $1.313136
Inventory: 1178
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6mm
Length 14.7mm
Height 6.9mm
Technical
Mating Connector Lock Without
Contact Current Rating 1.4A
Polarization Key POLARIZED HOUSING
ELV Compliant
Mating Contact Pitch 0.05 inch
Insulation Resistance 1GOhm
Operating Supply Voltage 100V
Lead Length 5.3mm
Housing Color Red, Black
Contact Gender Female
Number Of PCB Rows 2
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Red
Pitch - Mating 0.100 2.54mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.209 5.30mm
Depth 7mm
Orientation Vertical
Total Number of Contacts 8
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Friction Lock
Additional Feature LATCHED, POLARIZED
Voltage - Rated 100VDC
Number of Rows 2
Applications Automotive, General Purpose
Number of Positions 8
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Micro-MaTch
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Housing Material Polyamide
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 23 Weeks
