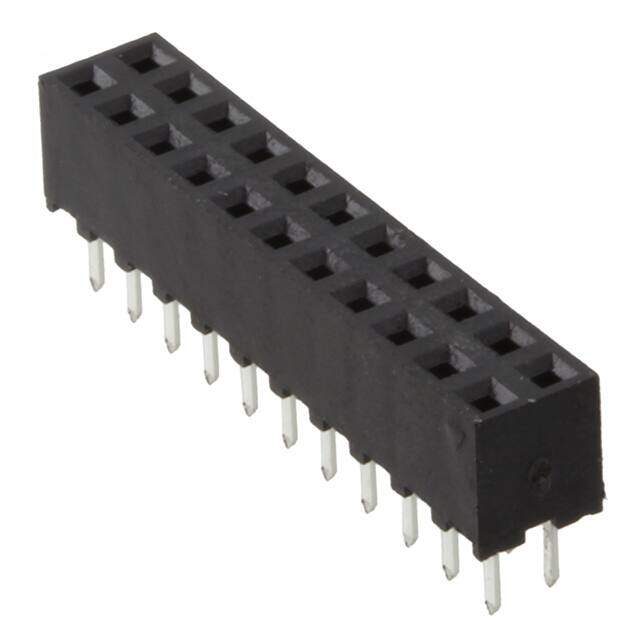

3-1734506-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 22 POS 2mm Solder ST Thru-Hole Tray
PDF
/
Buying Options
Total Price: USD $1.29
Unit Price: USD $1.2936
≥1 USD $1.2936
≥10 USD $1.1792
≥100 USD $1.051486
≥500 USD $0.941116
≥1000 USD $0.842354
≥3000 USD $0.755216
Inventory: 8964
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height 4.5mm
PCB Thickness 1.57mm
Contact Finish Thickness - Post 80.0μin 2.03μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 2.54μm
Technical
Contact Current Rating 1A
Plating Gold
ELV Compliant
Insulation Resistance 1GOhm
Operating Supply Voltage 250V
Lead Length 2.6mm
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 22
Shrouding No
Contact Length - Post 0.102 2.60mm
Row Spacing - Mating 0.079 (2.00mm)
Approval Agency CSA
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.177 4.50mm
Orientation Vertical
Pitch 2.0066mm
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250VAC
Gender Female
Number of Rows 2
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 22
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AMPMODU
Published 2006
Packaging Tray
Operating Temperature -40°C~105°C
Physical
PCB Mount Retention Without
PCB Mounting Orientation Vertical
Housing Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 14 Weeks
