280580-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

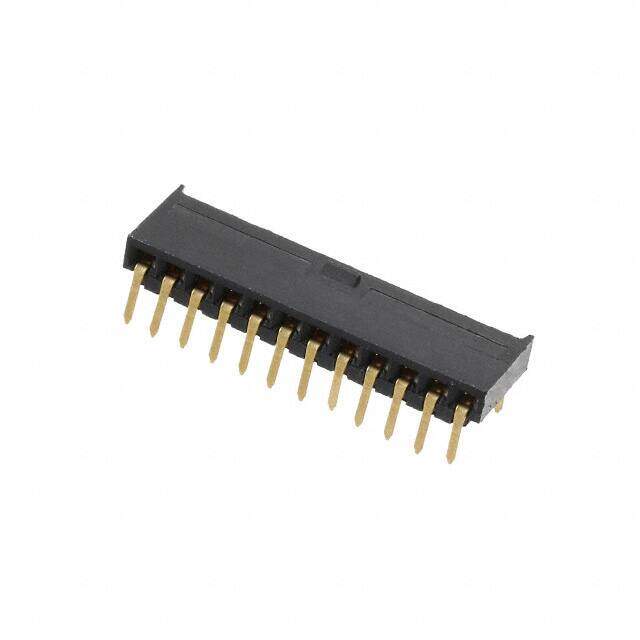

Conn Socket Strip RCP 12 POS 2.54mm Solder RA Thru-Hole
PDF
/
Inventory: 5604
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Tail 3.5mm
Contact Finish Thickness - Post Flash
Contact Finish Thickness - Mating 16.0μin 0.41μm
Plating Thickness 400 nm
Height 4.0386mm
Technical
High Temperature Compatible No
Stackable Yes
Contact Current Rating 3A
Withdrawl Force-Min .2085 N
PCB Contact Row Spacing 7.62 mm
Polarization Key POLARIZED HOUSING
ELV Compliant
Insulation Resistance 5GOhm
Rated Current (Signal) 3A
Body Depth 0.343 inch
Lead Length 3.5mm
Housing Color Black
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Contact Length - Post 0.138 3.50mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.157 4.00mm
Terminal Pitch 2.54mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Friction Lock
HTS Code 8536.69.40.40
Number of Rows 1
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 12
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series AMPMODU Mod II
Published 2009
Packaging Tray
Physical
PCB Mounting Orientation Right Angle
Housing Material Glass
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
