215307-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

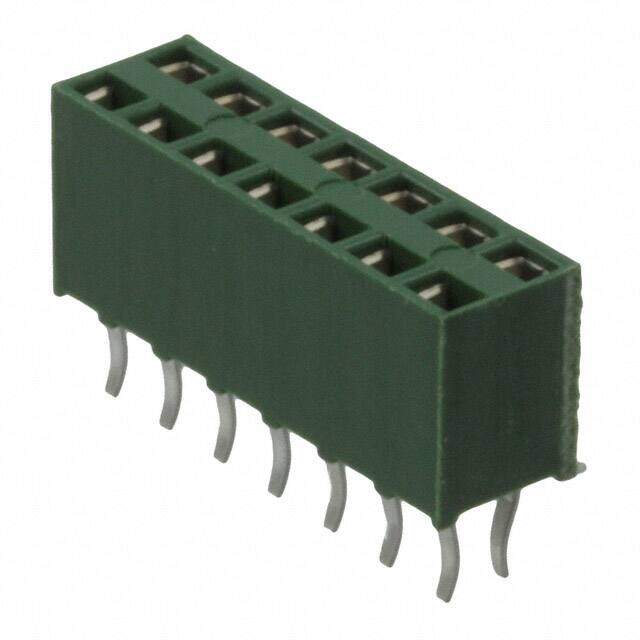

Headers & Wire Housings REC ASSY 2X7P VERT HV-100
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.276
≥1 USD $1.276
≥10 USD $1.16776
≥100 USD $1.041533
≥500 USD $0.932228
≥1000 USD $0.83439
≥3000 USD $0.7711
Inventory: 1407
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6mm
Length - Tail 3.1mm
Contact Finish Thickness - Post 98.4μin 2.50μm
Contact Finish Thickness - Mating 31.5μin 0.80μm
Plating Thickness 31μin
Length 17.78mm
Height 7mm
Technical
Stackable Yes
Contact Current Rating 3A
Sealable No
Number of Poles 7
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 12mOhm
Rated Current (Signal) 3A
Lead Length 3.1mm
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.199 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.122 3.10mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Green
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.276 7.00mm
Depth 5.06mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature TOP ENTRY
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 14
Connector Type Receptacle
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series AMPMODU HV-100
Published 2005
Packaging Tray
Physical
PCB Mount Retention With
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Gold, Tin
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 4 Weeks
Alternative Model
