215307-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

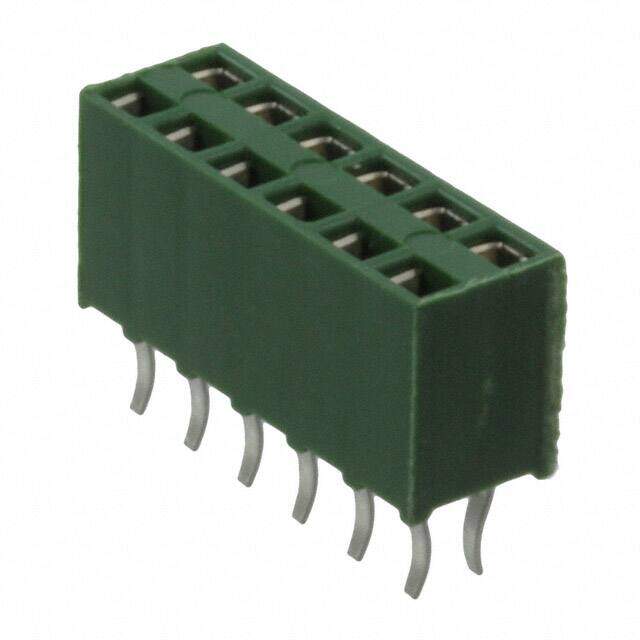

Headers & Wire Housings 2X06P RCPT HV-100 TE
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.8888
≥1 USD $0.8888
≥10 USD $0.83072
≥100 USD $0.71471
≥500 USD $0.691513
≥1000 USD $0.680152
Inventory: 10385
Minimum: 1
-
+
Technical Details
Technical
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 12
Connector Type Receptacle
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series AMPMODU HV-100
Published 2005
Packaging Tray
Stackable Yes
Contact Current Rating 3A
Sealable No
Number of Poles 6
Dielectric Withstanding Voltage 750VAC V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 12mOhm
Lead Length 3.1mm
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.199 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.122 3.10mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Green
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.276 7.00mm
Depth 5.06mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature TOP ENTRY
Physical
PCB Mount Retention With
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Gold, Tin
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 31 Weeks
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6mm
Length - Tail 3.1mm
Contact Finish Thickness - Post 98.4μin 2.50μm
Contact Finish Thickness - Mating 31.5μin 0.80μm
Plating Thickness 31μin
Length 15.24mm
Height 7mm
Alternative Model
