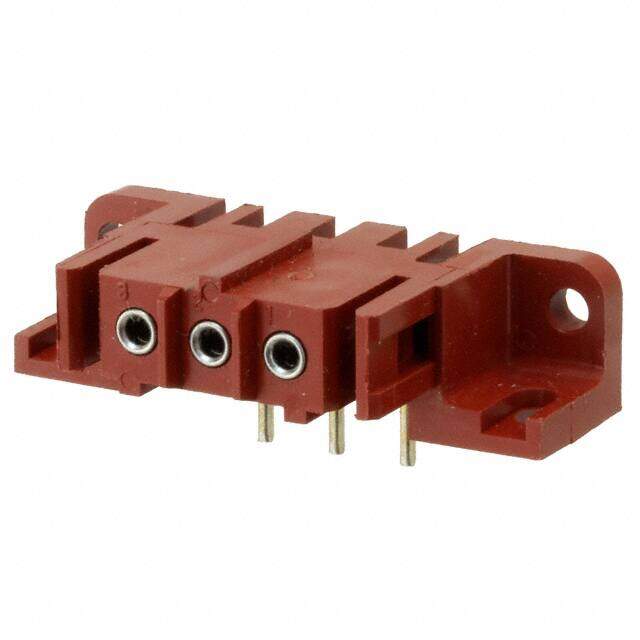

207608-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
IC & Component Sockets SKT HDR ASSY,3P MMATE LF
PDF
/
Inventory: 3525
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6002mm
Length - Tail 4.5974mm
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 150.0μin 3.81μm
Width 11mm
Length 36.55mm
Height 19.51mm
Technical
VDE Tested Yes
Mating Alignment With
Insulator Color RED
Contact Current Rating 7.5A
Withdrawl Force-Min .278 N
Insertion Force-Max 4.8928 N
Durability 250 Cycles
Dielectric Withstanding Voltage 2000VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 600V
ELV Compliant
Operating Supply Voltage 600V
Housing Color Red
UL Flammability Code 94V-0
Number Of PCB Rows 1
Contact Length - Post 0.186 4.72mm
Approval Agency UL
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.197 5.00mm
Current Rating 14A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.433 11.00mm
Depth 19.51mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Latch Holder
Additional Feature POLARIZED
Gender Female
Number of Rows 1
Number of Positions 3
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mounting Flange
JESD-609 Code e3
Series Metrimate
Published 1997
Packaging Tray
Operating Temperature -55°C~130°C
Physical
PCB Mounting Orientation Right Angle
Housing Material Nylon
Insulation Material Thermoplastic
Contact Shape Circular
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 22 Weeks
