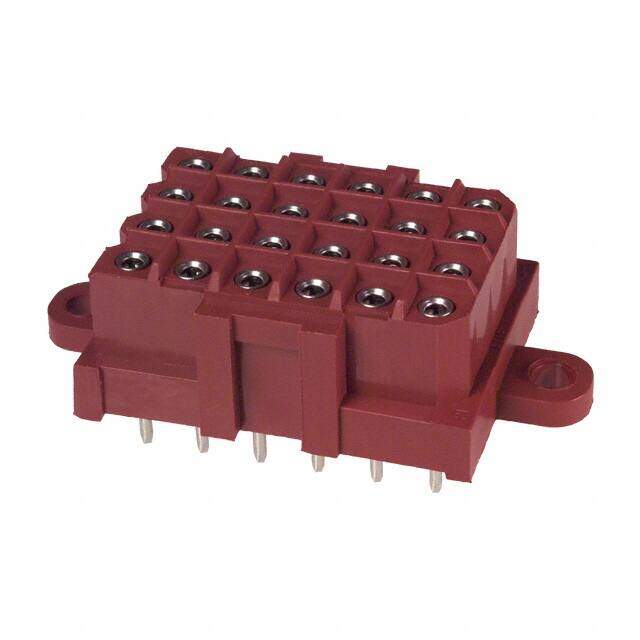

207532-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HEADER SKT 24POS VERT TIN
PDF
/
Buying Options
Total Price: USD $21.27
Unit Price: USD $21.2696
≥1 USD $21.2696
≥10 USD $16.316573
≥100 USD $15.416412
≥500 USD $14.966283
Inventory: 485
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.6002mm
Length - Tail 4.5974mm
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 150.0μin 3.81μm
Plating Thickness 3.81μm
Width 25.55mm
Length 47.32mm
Height 14.35mm
Technical
VDE Tested Yes
Mating Alignment With
Contact Retention With
Mating Retention With
Contact Current Rating 7.5A
Number of Ports 1
Max Voltage Rating (AC) 600V
ELV Compliant
Operating Supply Voltage 600V
Housing Color Red
Contact Gender Female
Contact Finish - Post Tin
Number of Contacts 24
Contact Length - Post 0.181 4.60mm
Row Spacing - Mating 0.197 (5.00mm)
Approval Agency UL
Insulation Color Black, Red
Pitch - Mating 0.197 5.00mm
Current Rating 14A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.565 14.35mm
Depth 47.32mm
Orientation Vertical
Pitch 5.0038mm
Current Rating (Amps) 7.5A
Contact Type Female Socket
Contact Finish - Mating Tin
Fastening Type Latch Holder
Voltage - Rated 600V
Gender Female
Number of Rows 4
Color Red
Min Operating Temperature -55°C
Max Operating Temperature 130°C
Number of Positions 24
Connector Type Header
Termination Solder
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Metrimate
Published 2005
Packaging Tray
Operating Temperature -55°C~130°C
Physical
PCB Mount Retention With
PCB Mounting Orientation Vertical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 12 Weeks
