207528-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

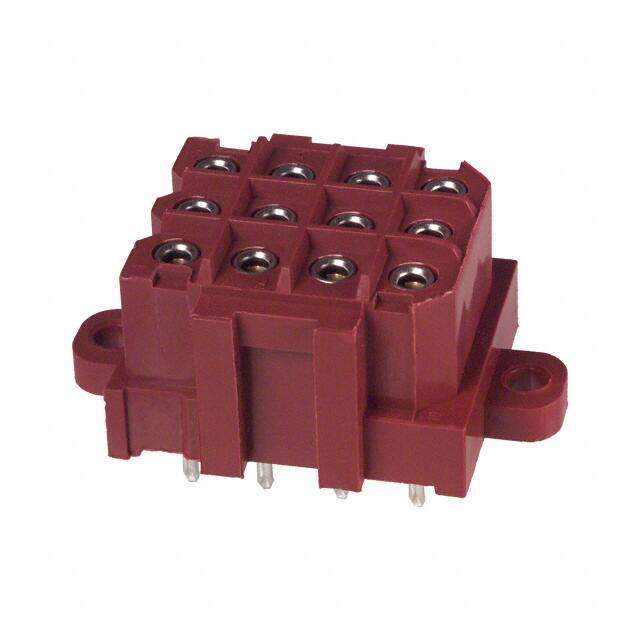

CONN HEADER SKT 12POS VERT GOLD
PDF
/
Buying Options
Total Price: USD $17.28
Unit Price: USD $17.2832
≥1 USD $17.2832
≥10 USD $14.012002
≥100 USD $13.544881
≥500 USD $12.423919
Inventory: 1069
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Phosphor Bronze
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -55°C~130°C
Packaging Tray
Published 2005
Series Metrimate
Feature Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
Termination Solder
ECCN Code EAR99
Connector Type Header
Color Red
Number of Rows 3
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Orientation Vertical
Depth 32.51mm
Insulation Height 0.565 14.35mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 14A
Pitch - Mating 0.197 5.00mm
Insulation Color Black, Red
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency UL
Row Spacing - Mating 0.197 (5.00mm)
Contact Length - Post 0.181 4.60mm
Number Of PCB Rows 4
Contact Finish - Post Tin
Body Breadth 0.84 inch
Contact Gender Female
UL Flammability Code 94V-0
Housing Color Red, Black
Empty Shell NO
Operating Supply Voltage 600V
ELV Compliant
Max Voltage Rating (AC) 600V
Dielectric Withstanding Voltage 2000VAC V
Number of Ports 1
Durability 250 Cycles
Max Voltage Rating (DC) 600V
Insertion Force-Max 4.8928 N
Contact Current Rating 7.5A
Mating Retention With
VDE Tested Yes
Dimensions
Height 14.35mm
Length 32.51mm
Width 21.34mm
Plating Thickness 3.81μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Tail 4.5974mm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
