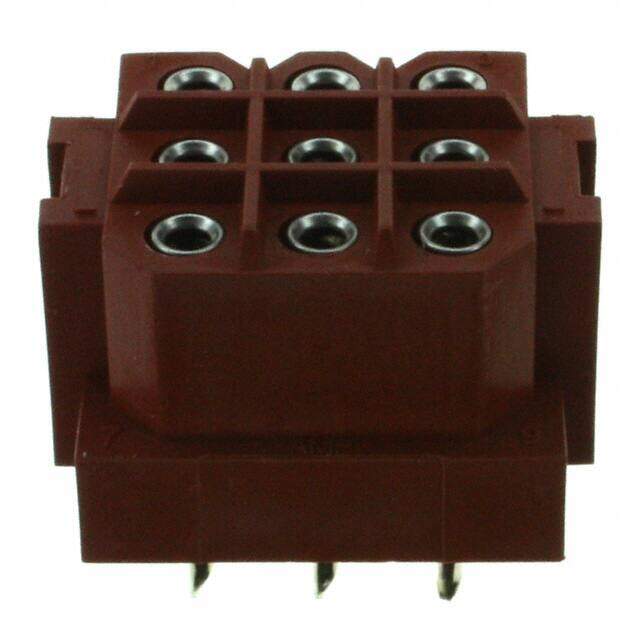

207526-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 9POS 0.197 TIN-LEAD PCB
PDF
/
Inventory: 914
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -55°C~130°C
Packaging Tray
Published 2004
Series Metrimate
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 9
Number of Rows 3
Gender Female
Fastening Type Latch Holder
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Vertical
Depth 27.69mm
Insulation Height 0.565 14.35mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 14A
Pitch - Mating 0.197 5.00mm
Insulation Color Red
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency UL
Row Spacing - Mating 0.197 (5.00mm)
Contact Length - Post 0.181 4.60mm
Number Of PCB Rows 3
Lead Pitch 5mm
Body Breadth 0.84 inch
Empty Shell NO
ELV Non-Compliant
Max Voltage Rating (AC) 600V
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 2000VAC V
Number of Ports 1
Durability 250 Cycles
Max Voltage Rating (DC) 600.6kV
Withdrawl Force-Min .278 N
Contact Current Rating 7.5A
VDE Tested Yes
Dimensions
Height 14.35mm
Length 27.69mm
Width 21.34mm
Plating Thickness 3.81μm
Contact Finish Thickness - Mating 150.0μin 3.81μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Tail 4.5974mm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
