2-215309-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

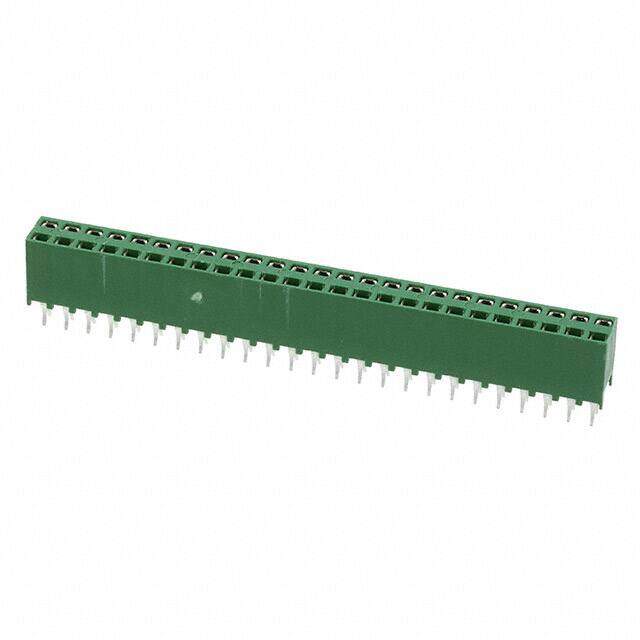

Headers & Wire Housings HV-100-F.ASSY.2X25P
PDF
/
Buying Options
Total Price: USD $4.74
Unit Price: USD $4.7432
≥1 USD $4.7432
≥10 USD $4.13563
≥100 USD $3.83218
Inventory: 316
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 31 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Contact Plating Tin, Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polyester
PCB Mount Retention With
Technical
Packaging Tray
Published 2008
Series AMPMODU HV-100
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 50
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Vertical
Depth 5.06mm
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Green
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.122 3.10mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.199 inch
UL Flammability Code 94V-0
Lead Length 3.1mm
Rated Current (Signal) 3A
Contact Resistance 12mOhm
Mating Contact Pitch 0.1 inch
ELV Compliant
Sealable No
Contact Current Rating 3A
Stackable Yes
Dimensions
Height 8.5mm
Length 63.5mm
Plating Thickness 31μin
Contact Finish Thickness - Mating 31.5μin 0.80μm
Contact Finish Thickness - Post 98.4μin 2.50μm
Length - Tail 3.1mm
PCB Thickness 1.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
