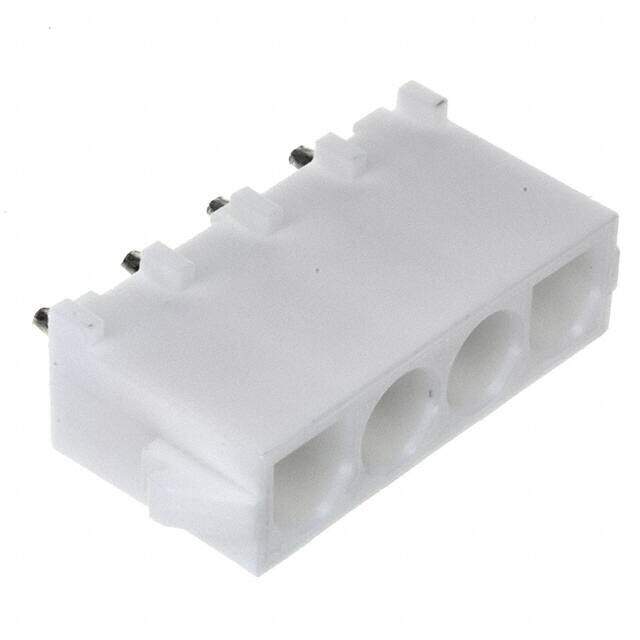

1586249-1
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET HEADER 4POS U-MNL
PDF
/
Inventory: 9475
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2003
Series Universal MATE-N-LOK
Feature Board Guide
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Color White
Number of Rows 1
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Female Socket
Pitch 6.35mm
Insulation Height 0.580 14.73mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.250 6.35mm
Insulation Color White
Contact Length - Post 0.155 3.94mm
Contact Finish - Post Tin
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
