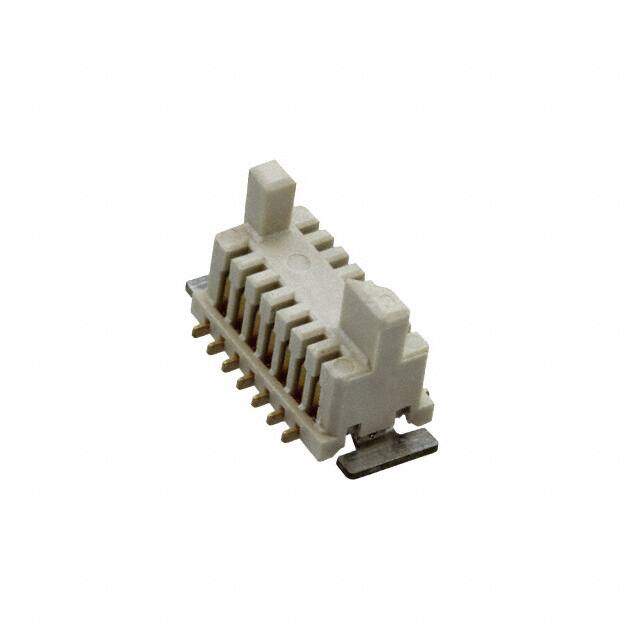

1375870-5
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings RCPT ASSY,14 POS VERT,0.8MM MI
PDF
/
Inventory: 8732
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Contact Plating Gold, Tin
Mount Surface Mount
Mounting Type Surface Mount
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
PCB Mount Retention With
Technical
Operating Temperature -55°C~85°C
Packaging Cut Tape (CT)
Published 2009
Series AMPMODU Micro
Feature Solder Retention
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 14
Color Beige
Number of Rows 2
Voltage - Rated 30VAC
Fastening Type Friction Lock
Contact Finish - Mating Gold
Filter Feature NO
Contact Type Female Blade Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 14
Orientation Vertical
Terminal Pitch 0.8mm
Depth 4.8mm
Insulation Height 0.197 5.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 750mA
Pitch - Mating 0.031 0.80mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 30V
Approval Agency UL
Contact Gender Female
UL Flammability Code 94V-0
Operating Supply Voltage 30V
Rated Current (Signal) 1A
Contact Resistance 25mOhm
Insulation Resistance 500MOhm
ELV Non-Compliant
Max Voltage Rating (AC) 30V
Wire/Cable Type Discrete
Contact Current Rating 1A
Mating Retention Without
Dimensions
Length 8.95mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 5.11μin 0.130μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
