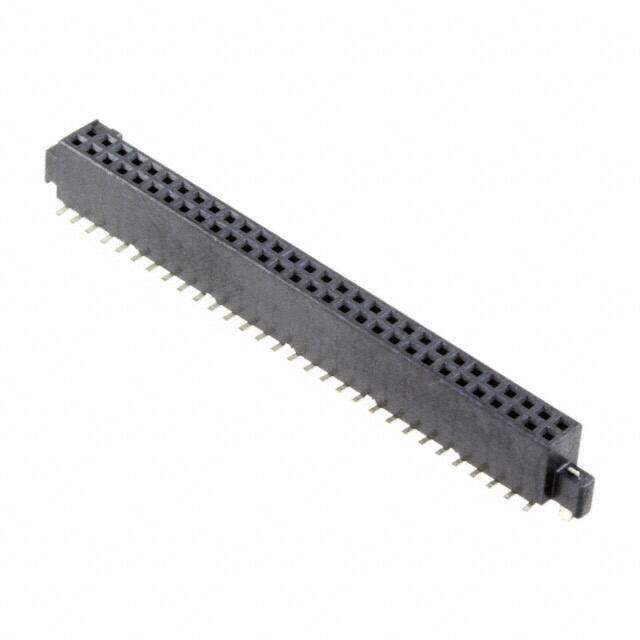

104786-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip RCP 60 POS 1.27mm Solder ST Thru-Hole Tube
PDF
/
Buying Options
Total Price: USD $12.4
Unit Price: USD $12.3992
≥1 USD $12.3992
≥10 USD $11.21296
≥100 USD $9.729808
≥500 USD $9.314483
≥1000 USD $8.305906
Inventory: 1190
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Liquid Crystal Polymer
Mounting Option 1 LOCKING
Underplate Material Nickel
Technical
Packaging Tube
Published 2009
Series AMPMODU 50/50 Grid
Feature Board Lock
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 60
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Number of Rows 2
Gender Female
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 60
Orientation Vertical
Insulation Height 0.187 4.75mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Body Length or Diameter 1.676 inch
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
Contact Finish - Post Tin-Lead
PCB Contact Pattern RECTANGULAR
Body Depth 0.187 inch
Operating Supply Voltage 30V
Mating Contact Pitch 0.05 inch
ELV Compliant
Polarization Key POLARIZED HOUSING
Contact Current Rating 4A
Mating Alignment With
Dimensions
Height 4.7498mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
