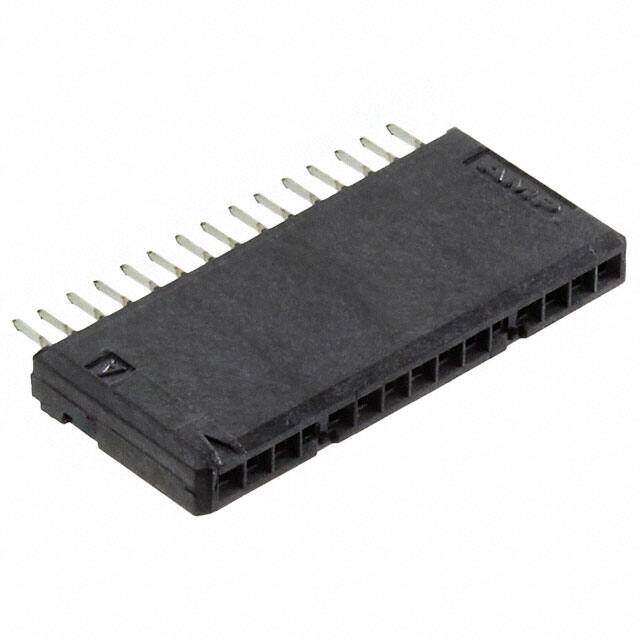

104192-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Board to Board & Mezzanine Connectors 15 SYSTEM 50 RCPT ASSY SRST
PDF
/
Inventory: 4952
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 42 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic, Glass Filled
Housing Material Thermoplastic
PCB Mounting Orientation Vertical
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2006
Series AMPMODU System 50
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 15
Number of Rows 1
Gender Female
Voltage - Rated 30VAC
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A
Orientation Straight
Depth 2.48mm
Insulation Height 0.350 8.89mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency CSA
Body Length or Diameter 0.794 inch
Contact Length - Post 0.100 2.54mm
Number Of PCB Rows 1
Contact Finish - Post Tin-Lead
PCB Contact Pattern RECTANGULAR
Body Breadth 0.098 inch
Lead Length 2.54mm
Operating Supply Voltage 30V
Insulation Resistance 5GOhm
Mating Contact Pitch 0.05 inch
ELV Non-Compliant
Max Voltage Rating (AC) 30V
Dielectric Withstanding Voltage 300VAC V
Durability 200 Cycles
Withdrawl Force-Min .2224 N
Contact Current Rating 4A
Dimensions
Height 8.89mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Tail 2.54mm
Stack Height (Mating) 11.43mm 12.57mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
