1-966645-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

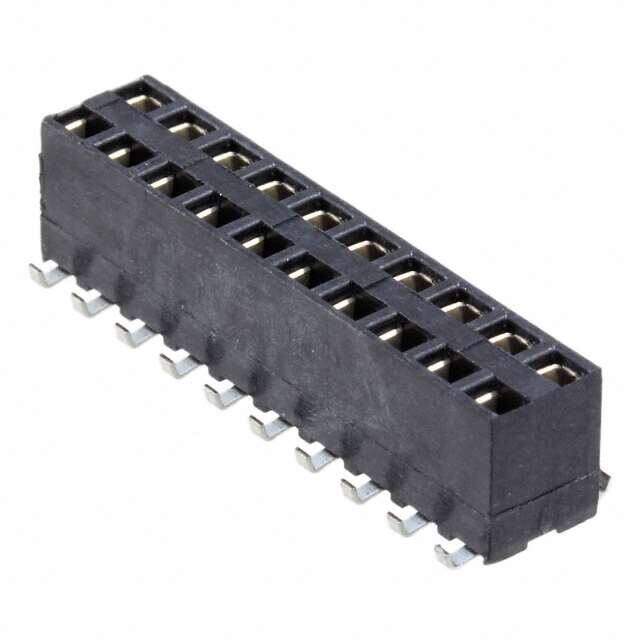

Headers & Wire Housings HV100 FEDLEI 2X10P 20X
PDF
/
Buying Options
Total Price: USD $4.99
Unit Price: USD $4.994708
≥1 USD $4.994708
≥10 USD $4.711986
≥100 USD $4.445272
≥500 USD $4.193651
≥1000 USD $3.956282
Inventory: 6927
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
PCB Thickness 1.6mm
Contact Finish Thickness - Post 98.4μin 2.50μm
Contact Finish Thickness - Mating 31.5μin 0.80μm
Plating Thickness 2.5μm
Height 7mm
Technical
Sealable No
Withdrawl Force-Min .139 N
Insertion Force-Max 1.1954 N
Dielectric Withstanding Voltage 1000VAC V
Max Voltage Rating (AC) 250V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 10000000000Ohm
Contact Resistance 12mOhm
Rated Current (Signal) 3A
Contact Gender Female
Body Breadth 0.199 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 1 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.244 6.20mm
Orientation Vertical
Total Number of Contacts 20
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Receptacle
Number of Rows 2
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 20
Connector Type Receptacle, Bottom or Top Entry
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series AMPMODU HV-100
Published 2005
Packaging Tube
Physical
PCB Mount Retention Without
Housing Material Polycyclohexylenedimethylene
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold, Tin
Contact Material Copper Alloy
