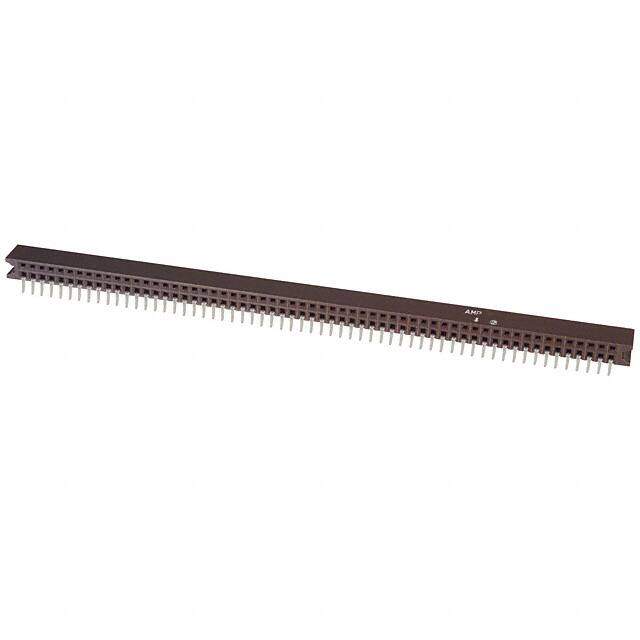

1-532956-8
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RECPT 120POS .100 RT/A DUAL
PDF
/
Inventory: 9461
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
PCB Thickness 1.57mm
Length - Tail 2.921mm
Contact Finish Thickness - Post 50.0μin 1.27μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 158.95mm
Height 6.096mm
Technical
High Temperature Compatible Yes
Mating Alignment With
Circuit Application Signal
Contact Current Rating 3A
Withdrawl Force-Min .1946 N
PCB Contact Row Spacing 7.874 mm
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 1GOhm
Contact Resistance 12mOhm
Rated Current (Signal) 3A
Operating Supply Voltage 250V
Lead Length 2.92mm
UL Flammability Code 94V-0
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin-Lead
Number Of PCB Rows 2
Contact Length - Post 0.115 2.92mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 250V
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.238 6.05mm
Depth 8.13mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 2
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 120
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Feature Guide Pin Ears
Series AMPMODU Mod II
Published 2008
Packaging Tube
Physical
PCB Mount Alignment Without
PCB Mounting Orientation Right Angle
Housing Material Thermoplastic
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 20 Weeks
