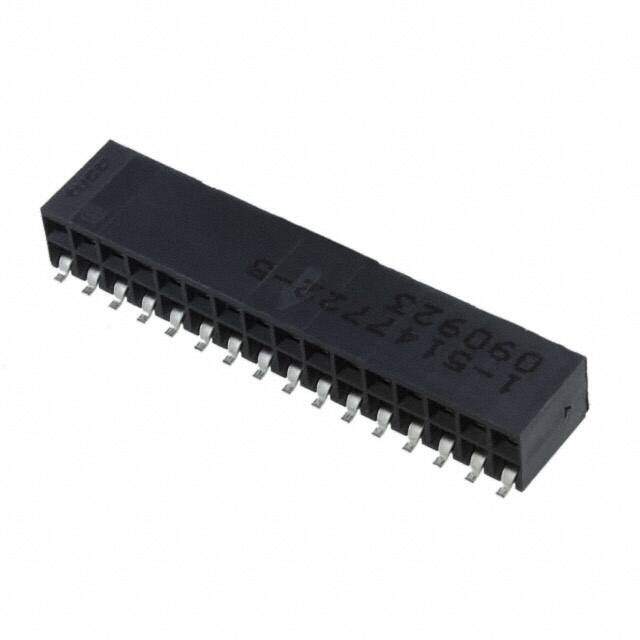

1-5147722-5 image
Favorite
1-5147722-5 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Conn Socket Strip RCP 32 POS 2.54mm Solder RA SMD
PDF
/
Inventory: 7680
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)

Physical

Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material Polyester
PCB Mounting Orientation Right Angle
PCB Mount Retention Without

Technical

Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Published 2008
Series AMPMODU Mod II
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 32
Number of Rows 2
Gender Female
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Orientation Horizontal, Right Angle
Insulation Height 0.238 6.05mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Contact Finish - Post Tin
Lead Length 860μm
Contact Resistance 12MOhm
Insulation Resistance 5GOhm
ELV Compliant
Sealable No
Contact Current Rating 2A
High Temperature Compatible Yes

Dimensions

Height 6.0452mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
PCB Thickness 1.02mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
