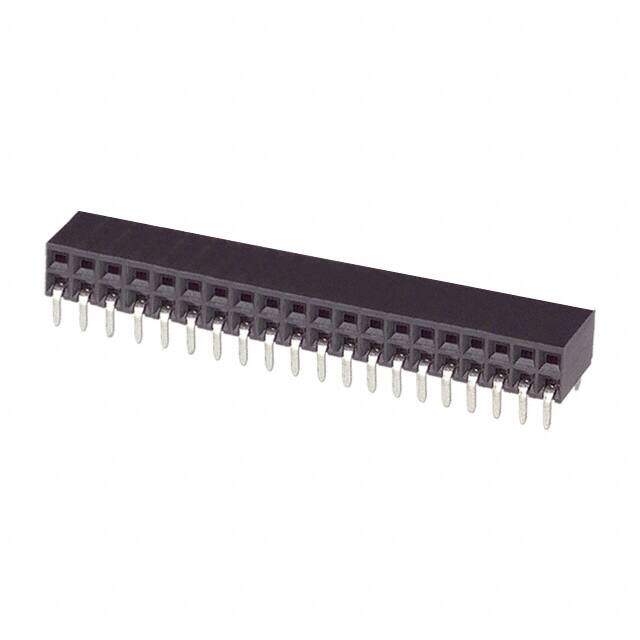

1-5146140-9
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 40POS 0.1 GOLD PCB R/A
PDF
/
Inventory: 7984
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 2.4mm
Length - Tail 2.92mm
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Height 6.0452mm
Technical
High Temperature Compatible Yes
Stackable Yes
Contact Current Rating 2A
Sealable No
Plating Gold
ELV Compliant
Insulation Resistance 5GOhm
Contact Resistance 12MOhm
Operating Supply Voltage 333V
Lead Length 2.92mm
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 40
Contact Length - Post 0.115 2.92mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Insulation Height 0.238 6.05mm
Orientation Right Angle
Pitch 2.54mm
Current Rating (Amps) 2A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 40
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series AMPMODU Mod II
Published 2008
Packaging Tube
Operating Temperature -55°C~125°C
Physical
PCB Mount Retention Without
PCB Mounting Orientation Right Angle
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Phosphor Bronze
