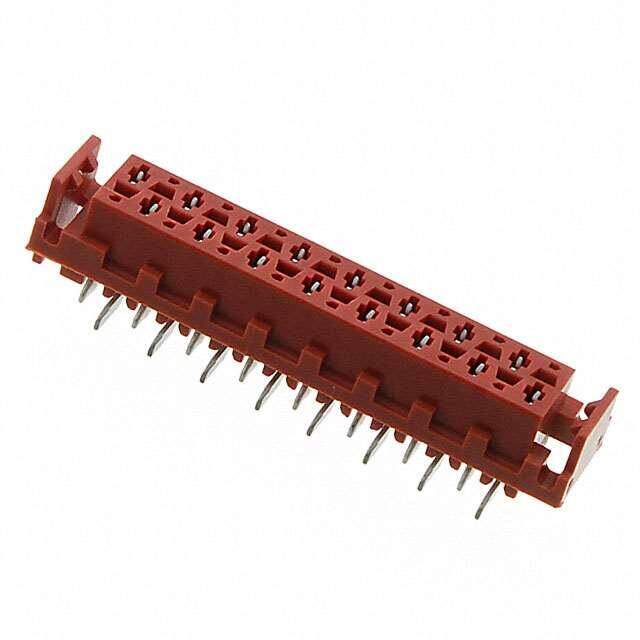

1-338069-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings FOB 16P TOP ENTRY SMT
PDF
/
Buying Options
Total Price: USD $3.33
Unit Price: USD $3.3264
≥1 USD $3.3264
≥10 USD $2.9612
≥100 USD $2.628824
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Housing Material Polyamide
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2005
Series Micro-MaTch
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 16
Applications Automotive, General Purpose
Number of Rows 2
Voltage - Rated 100VDC
HTS Code 8536.69.40.40
Fastening Type Friction Lock
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Total Number of Contacts 16
Orientation Vertical
Depth 7mm
Insulation Height 0.209 5.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Red
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Number Of PCB Rows 2
Contact Gender Female
Housing Color Red, Black
Lead Length 5.3mm
Operating Supply Voltage 100V
Insulation Resistance 1GOhm
Mating Contact Pitch 0.05 inch
ELV Compliant
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 4.4958 mm
Wire/Cable Gauge 28 AWG
Withdrawl Force-Min 1.0008 N
Contact Current Rating 1.4A
Mating Connector Lock Without
Dimensions
Height 6.9mm
Length 24.9mm
PCB Thickness 1.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Alternative Model
