1-338068-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

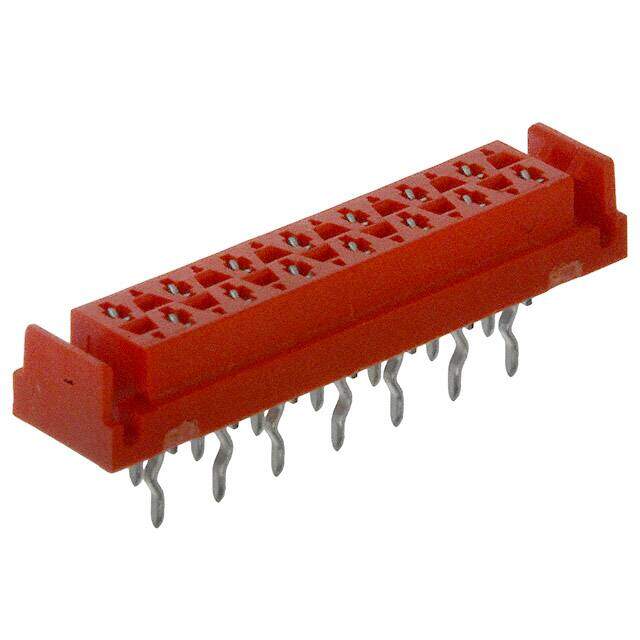

CONN FMALE-ON-BRD 14POS VERT T/H
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.1264
≥1 USD $1.1264
≥10 USD $1.05336
≥100 USD $0.906488
≥500 USD $0.798688
≥1000 USD $0.715396
Inventory: 6766
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polyester
PCB Mount Retention With
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2005
Series Micro-MaTch
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 14
Applications Automotive, General Purpose
Number of Rows 2
Voltage - Rated 100VDC
HTS Code 8536.69.40.40
Fastening Type Friction Lock
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Orientation Vertical
Depth 5.2mm
Insulation Height 0.157 4.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.5A
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.122 3.10mm
Number Of PCB Rows 2
Contact Gender Female
Housing Color Red
Lead Length 3.0988mm
Operating Supply Voltage 100V
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Mating Contact Pitch 0.1 inch
ELV Compliant
Polarization Key POLARIZED HOUSING
Max Voltage Rating (DC) 100V
Withdrawl Force-Min 1.0008 N
Contact Current Rating 1.5A
Insulator Color RED
Mating Connector Lock Without
Dimensions
Height 4.064mm
Length 22.4mm
PCB Thickness 1.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
