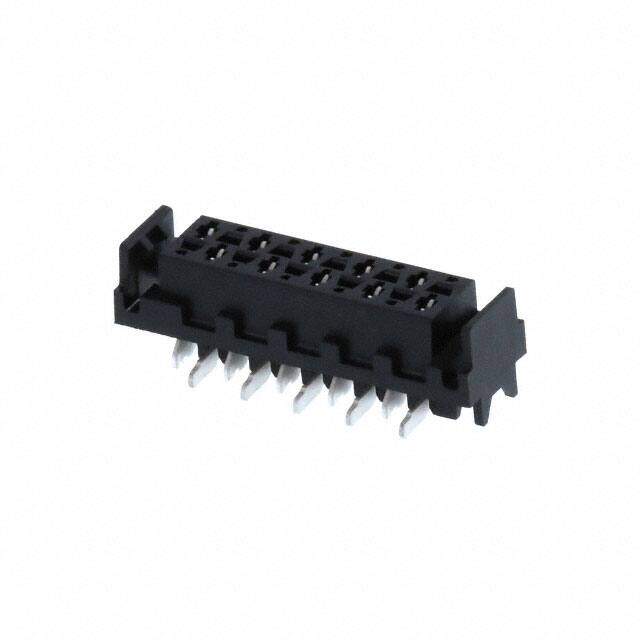

1-2823056-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
10P,FOB,SMD W/ LATCH,MM VALUE LI
PDF
/
Inventory: 2648
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
PCB Thickness 1.6mm
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 118.1μin 3.00μm
Length 17.3mm
Height 6.9mm
Technical
Mating Connector Lock Without
Contact Current Rating 1.4A
Row Spacing 1.5 mm
Insulation Resistance 1GOhm
Operating Supply Voltage 100V
Lead Length 5.3mm
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 10
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1.3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.209 5.30mm
Orientation Vertical
Pitch 1.27mm
Contact Type Forked
Contact Finish - Mating Tin
Voltage - Rated 100VDC
Number of Rows 2
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Number of Positions 10
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series Micro-MaTch
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -30°C~85°C
Physical
PCB Mount Retention Without
PCB Mounting Orientation Vertical
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Shape Rectangular
Number of Pins 10
Mounting Type Surface Mount
Contact Plating Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 35 Weeks
