1-2178710-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

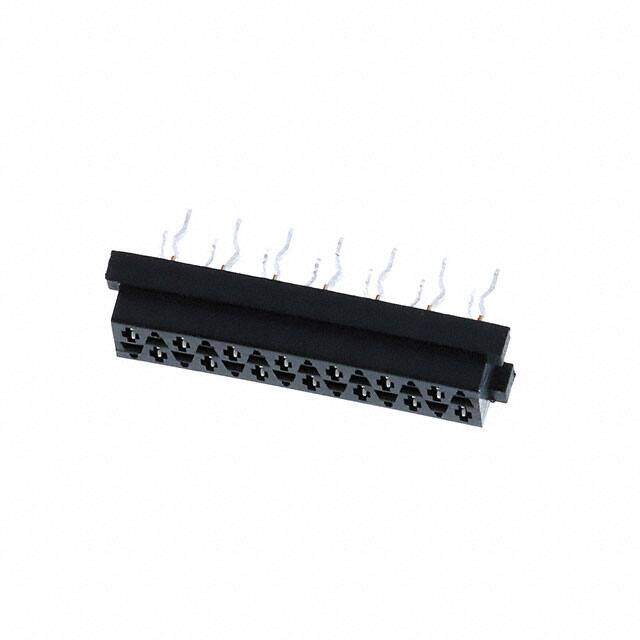

AMP FROM TE CONNECTIVITY 1-2178710-4 Wire-To-Board Connector, Micro-MaTch Value-Line Series, 14 Contacts, Receptacle, 1.27 mm
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.532993
≥1 USD $0.532993
≥10 USD $0.502821
≥100 USD $0.474358
≥500 USD $0.447511
≥1000 USD $0.422178
Inventory: 4014
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Number of Pins 14
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Polyester
PCB Mounting Orientation Vertical
PCB Mount Retention With
Technical
Operating Temperature -30°C~85°C
Packaging Tape & Reel (TR)
Published 2014
Series Micro-MaTch
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Receptacle
Number of Positions 14
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications General Purpose, Telecommunications
Number of Rows 2
Gender Receptacle
Voltage - Rated 100VDC
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Forked
Pitch 1.27mm
Orientation Vertical
Insulation Height 0.157 4.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 850mA
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.122 3.10mm
Number of Contacts 14
Contact Finish - Post Tin
Housing Color Black
Lead Length 3.0988mm
Operating Supply Voltage 100V
Insulation Resistance 1GOhm
ELV Compliant
Contact Current Rating 1.4A
Mating Connector Lock Without
Dimensions
Height 4.064mm
Length 19.7866mm
Plating Thickness 5 nm
Contact Finish Thickness - Mating 118.1μin 3.00μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
