1-215297-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

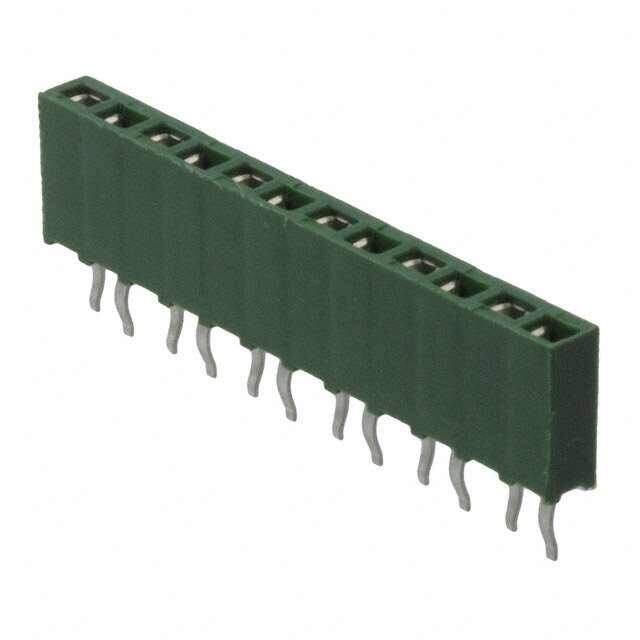

SOCKET, VERTICAL, 1ROW, 12WAY
PDF
/
Buying Options
Total Price: USD $1.42
Unit Price: USD $1.4168
≥1 USD $1.4168
≥10 USD $1.245675
≥100 USD $1.156258
≥500 USD $0.926297
≥1000 USD $0.830474
≥3000 USD $0.790627
Inventory: 4158
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 31 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Phosphor Bronze
Contact Plating Gold, Tin
Mount PCB, Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polyester
PCB Mounting Orientation Vertical
PCB Mount Retention With
Technical
Packaging Tray
Published 2003
Series AMPMODU HV-100
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
ECCN Code EAR99
Connector Type Receptacle
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Number of Rows 1
Additional Feature TOP ENTRY
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Depth 2.52mm
Insulation Height 0.276 7.00mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Green
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.122 3.10mm
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.099 inch
Contact Gender Female
UL Flammability Code 94V-0
Lead Length 3.1mm
Contact Resistance 12mOhm
Insulation Resistance 5000000000Ohm
Row Spacing 2.54 mm
ELV Compliant
Dielectric Withstanding Voltage 750VAC V
Number of Poles 12
Contact Current Rating 3A
Stackable Yes
Dimensions
Height 7mm
Length 30.48mm
Contact Finish Thickness - Mating 31.5μin 0.80μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Length - Tail 3.1mm
PCB Thickness 1.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
