1-207528-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

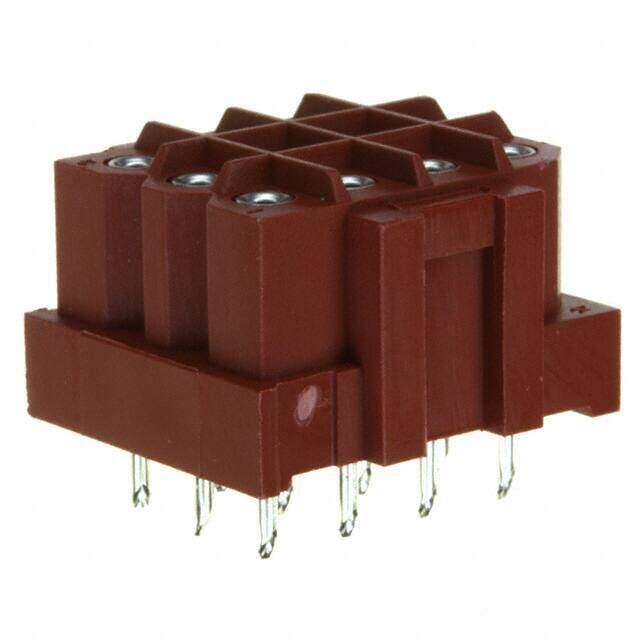

Conn Power SKT 12 POS 5mm Solder ST Thru-Hole 12 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $16.81
Unit Price: USD $16.808
≥1 USD $16.808
≥10 USD $15.236065
≥100 USD $13.747483
≥500 USD $13.65995
Inventory: 643
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
PCB Mounting Orientation Vertical
PCB Mount Retention Without
Technical
Operating Temperature -55°C~130°C
Packaging Tray
Published 2008
Series Metrimate
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 12
Color Red
Number of Rows 3
Gender Female
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Female Socket
Depth 32.51mm
Insulation Height 0.565 14.35mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 14A
Pitch - Mating 0.197 5.00mm
Insulation Color Black, Red
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency UL
Row Spacing - Mating 0.197 (5.00mm)
Contact Length - Post 0.181 4.60mm
Number Of PCB Rows 3
Contact Finish - Post Tin
Body Breadth 0.84 inch
Operating Supply Voltage 600V
ELV Compliant
Max Voltage Rating (AC) 600V
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 2000VAC V
Number of Ports 1
Durability 250 Cycles
Max Voltage Rating (DC) 600.6kV
Insertion Force-Max 4.8928 N
Withdrawl Force-Min .278 N
Contact Current Rating 7.5A
Mating Retention With
VDE Tested Yes
Dimensions
Length 21.34mm
Plating Thickness 3.81μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Tail 4.8768mm
PCB Thickness 1.6002mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
