1-207496-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

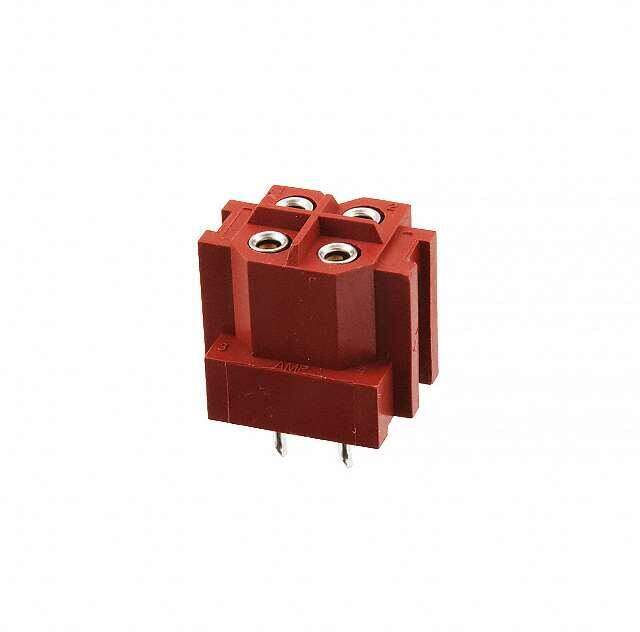

Pin & Socket Connectors SKT HDR ASSY 4P MMATE LF
PDF
/
Inventory: 4689
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Housing Material Thermoplastic
Technical
Operating Temperature -55°C~130°C
Packaging Bulk
Published 2005
Series Metrimate
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Color Red
Number of Rows 2
Gender Female
Voltage - Rated 600V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 7.5A
Orientation Vertical
Terminal Pitch 5.0038mm
Insulation Height 0.565 14.35mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 14A
Pitch - Mating 0.197 5.00mm
Insulation Color Black, Red
Number of Conductors ONE
Reference Standard UL,VDE,CSA
Reliability COMMERCIAL
Body Length or Diameter 0.89 inch
Row Spacing - Mating 0.197 (5.00mm)
Contact Length - Post 0.181 4.60mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.61 inch
Lead Length 4.6mm
Body Depth 0.565 inch
Insulation Resistance 100000000Ohm
Mating Contact Pitch 0.197 inch
ELV Compliant
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 5.0038 mm
Keyed No
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Termination 0.181 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
