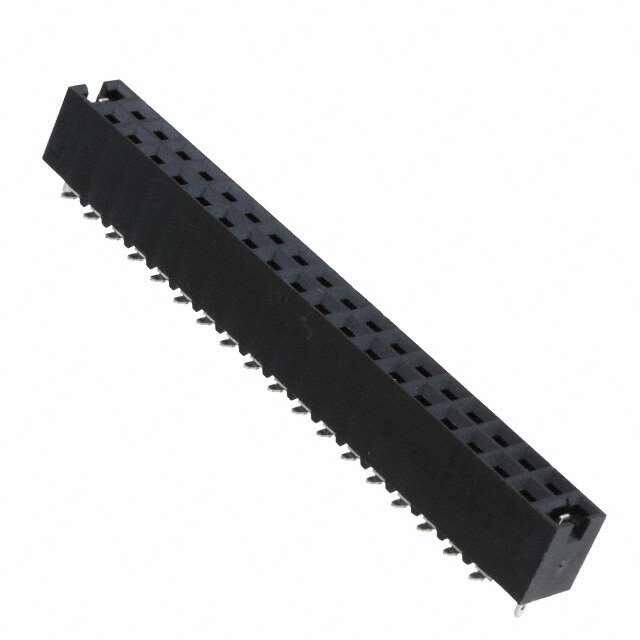

1-147102-8
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 36 MODIV VRT DR 100/SFMNT 30AU
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.8864
≥1 USD $2.8864
Inventory: 85
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Dimensions
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 50.8mm
Technical
High Temperature Compatible Yes
Stackable No
Withdrawl Force-Min .417 N
PCB Contact Row Spacing 6.35 mm
Dielectric Withstanding Voltage 750VAC V
Max Voltage Rating (AC) 250V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 12mOhm
Housing Color Black
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin-Lead
Number Of PCB Rows 2
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA, UL
Reliability COMMERCIAL
Voltage - Rated AC 250V
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.265 6.73mm
Depth 5.03mm
Orientation Vertical
Total Number of Contacts 36
Current Rating (Amps) 2A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 36
Connector Type Receptacle, Bottom or Top Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Board Lock, Pick and Place
Series AMPMODU Mod IV
Published 2006
Packaging Tube
Operating Temperature -65°C~125°C
Physical
Housing Material Polymer
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 11 Weeks
