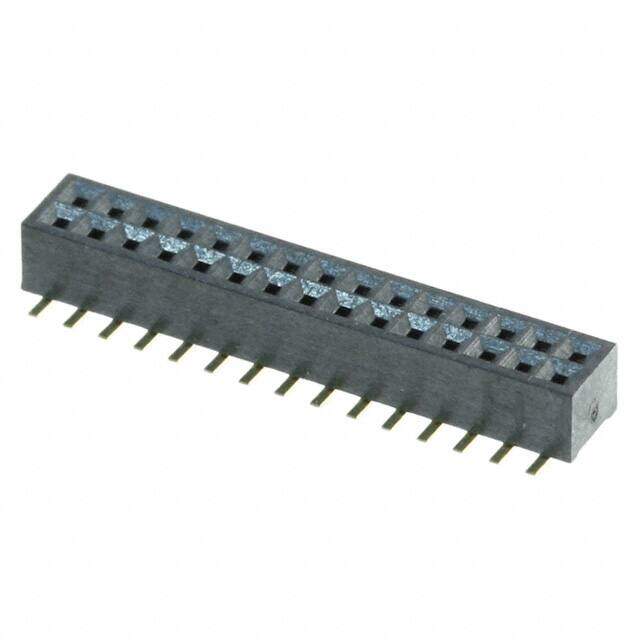

SFM210-LPSE-D15-SP-BK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR FMAL 30POS 1MM GOLD SMD
PDF
/
Inventory: 1610
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post Flash
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Technical
PCB Contact Row Spacing 3.1496 mm
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.039 inch
Insulation Resistance 1000000000Ohm
Body Depth 0.087 inch
Body Breadth 0.098 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Row Spacing - Mating 0.039 (1.00mm)
Body Length or Diameter 0.611 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.087 2.20mm
Terminal Pitch 0.9906mm
Total Number of Contacts 30
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 30
Connector Type Header, Top or Bottom Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series SFM210
Published 2009
Packaging Tube
Operating Temperature -40°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 4 Weeks
