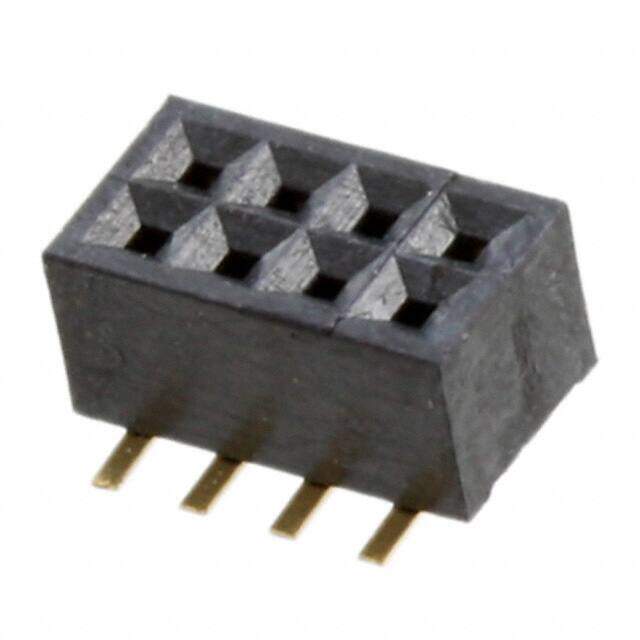

SFM210-LPSE-D04-SP-BK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR FMAL 8POS 1MM GOLD SMD
PDF
/
Inventory: 2831
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~125°C
Packaging Tube
Published 2009
Series SFM210
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Top or Bottom Entry
Number of Positions 8
Number of Rows 2
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Total Number of Contacts 8
Terminal Pitch 0.9906mm
Insulation Height 0.087 2.20mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.039 1.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.177 inch
Row Spacing - Mating 0.039 (1.00mm)
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.039 inch
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 300VAC V
PCB Contact Row Spacing 3.1496 mm
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
