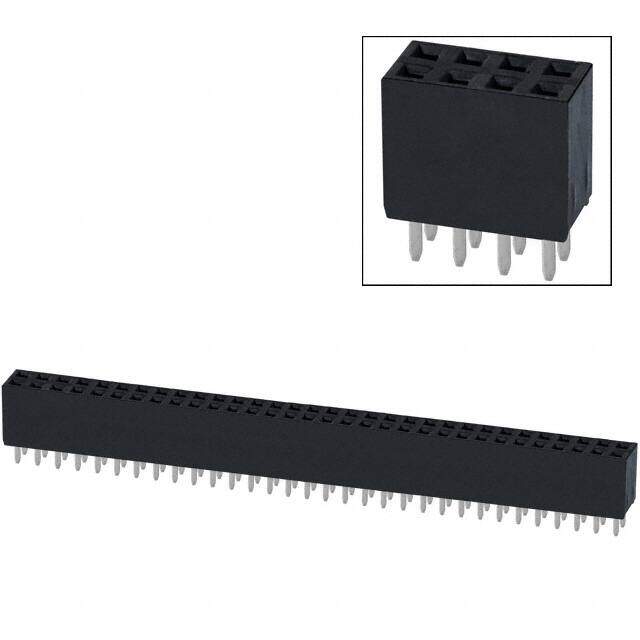

PPTC322LFBN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 64POS 0.1 TIN PCB
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.8864
≥1 USD $2.8864
≥10 USD $2.62328
≥100 USD $2.3111
≥500 USD $1.964442
≥1000 USD $1.675555
≥3000 USD $1.650792
Inventory: 448
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 5mm
Length 81.8mm
Height 8.5mm
Technical
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Body Depth 0.334 inch
Body Breadth 0.197 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 250V
Number of Rows 2
Number of Positions 64
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2006
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 4 Weeks
