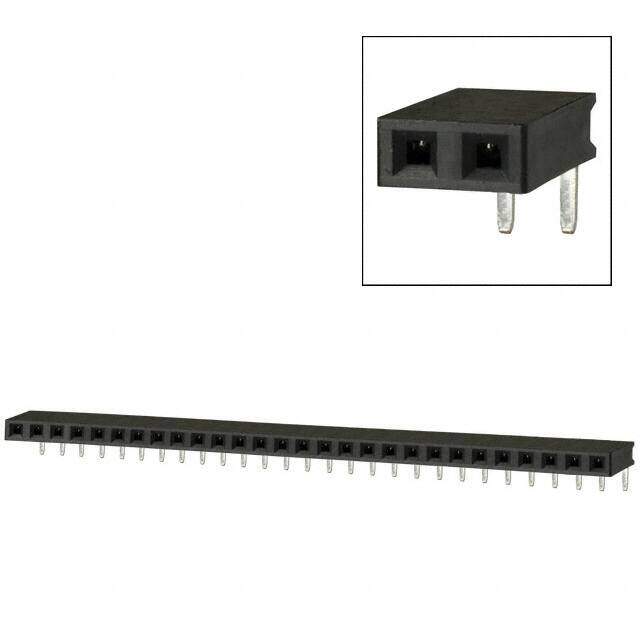

PPTC281LGBN-RC image
Favorite
PPTC281LGBN-RC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN HDR 28POS 0.1 TIN PCB R/A
PDF
/
Inventory: 1454
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 8.5mm
Length 71.6mm
Height 2.4mm

Technical

Polarization Key POLARIZED HOUSING
Housing Color Black
Body Breadth 0.094 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.124 3.15mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 250V
Number of Rows 1
Number of Positions 28
Connector Type Header
Termination Solder
Part Status Active
Pbfree Code yes
Published 2006
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 6 Weeks
