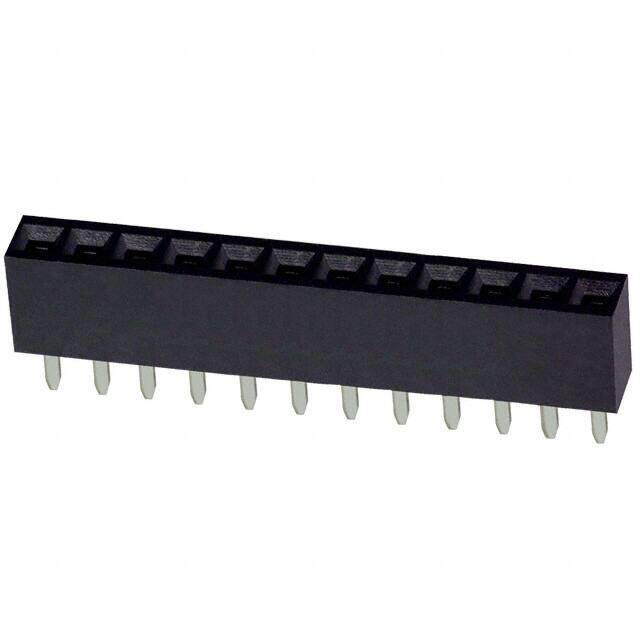

PPTC121LFBN
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HEADER FEM 12POS.1 SGL TIN
PDF
/
Inventory: 8514
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2003
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 12
Number of Rows 1
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Female Socket
Current Rating (Amps) 3A
Terminal Pitch 2.54mm
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.126 3.20mm
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Housing Color Black
Body Depth 0.335 inch
Contact Resistance 20mOhm
Insulation Resistance 5000000000Ohm
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 2.54 mm
Dimensions
Height 8.5mm
Length 31mm
Width 2.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
