Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets

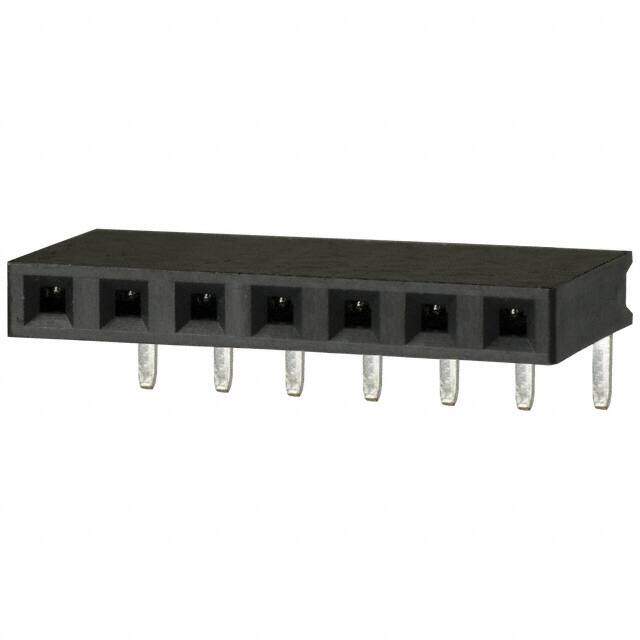

Description CONN HDR 7POS 0.1 TIN PCB R/A
PDF
/
Inventory: 8239
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 8.5mm
Length 18.3mm
Height 2.4mm

Technical

Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
Insulation Resistance 5000000000Ohm
Contact Resistance 20mOhm
Body Depth 0.398 inch
Housing Color Black
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.124 3.15mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 250V
Number of Rows 1
Number of Positions 7
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Published 2004
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
