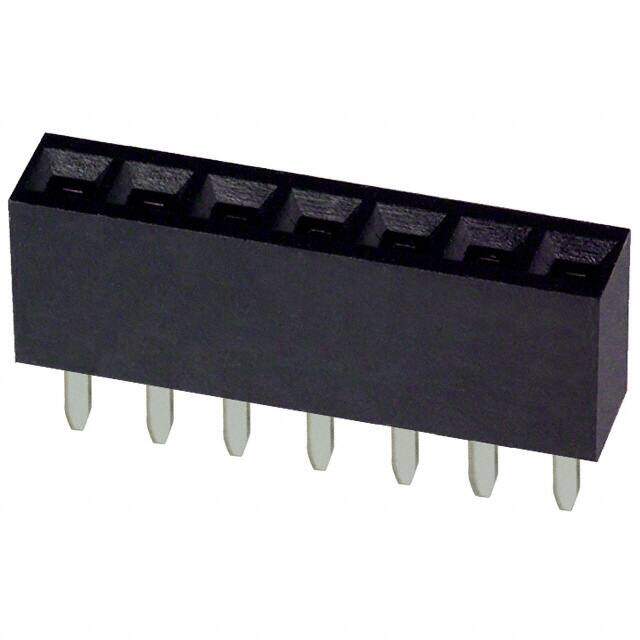

PPTC071LFBN
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HEADER FEM 7POS .1 SGL TIN
PDF
/
Inventory: 6312
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 2.5mm
Length 18.3mm
Height 8.5mm
Technical
PCB Contact Row Spacing 2.54 mm
Polarization Key POLARIZED HOUSING
Insulation Resistance 5000000000Ohm
Contact Resistance 20mOhm
Body Depth 0.335 inch
Housing Color Black
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Contact Length - Post 0.126 3.20mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 250V
Number of Rows 1
Number of Positions 7
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Published 2003
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
