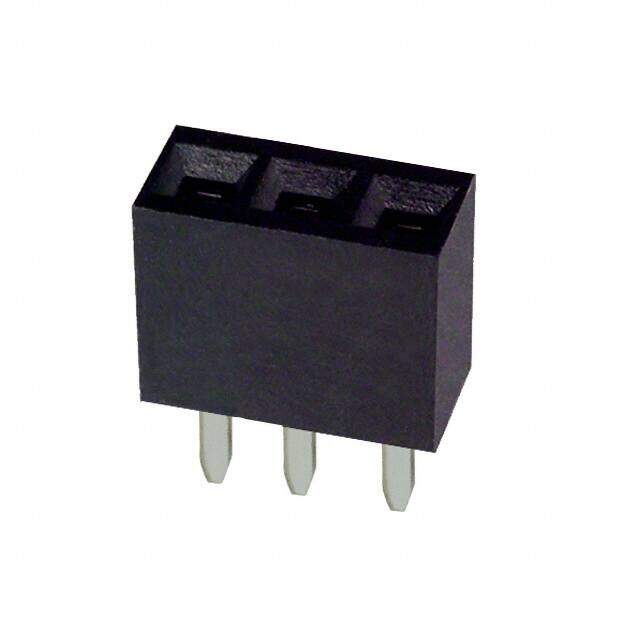

PPTC031LFBN image
Favorite
PPTC031LFBN image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN HEADER FEM 3POS .1 SGL TIN
PDF
/
Inventory: 7709
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2003
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 3
Number of Rows 1
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Female Socket
Current Rating (Amps) 3A
Terminal Pitch 2.54mm
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.126 3.20mm
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Housing Color Black
Contact Resistance 20mOhm
Insulation Resistance 5000000000Ohm
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 2.54 mm

Dimensions

Height 8.5mm
Length 8.12mm
Width 2.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
