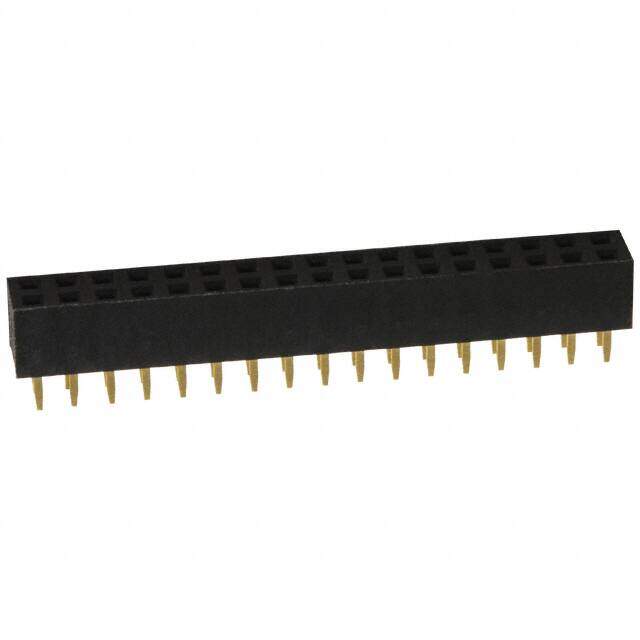

PPPN172AFCN image
Favorite
PPPN172AFCN image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RECEPT 2MM DUAL STR 34POS
PDF
/
Inventory: 2701
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash
Width 4mm
Length 34.5mm
Height 4.3mm

Technical

UL Flammability Code 94V-0
Lead Pitch 2mm
Contact Length - Post 0.094 2.40mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.169 4.30mm
Current Rating (Amps) 1A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Female
Number of Rows 2
Number of Positions 34
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Published 2000
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
