PPPN132AFCN
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

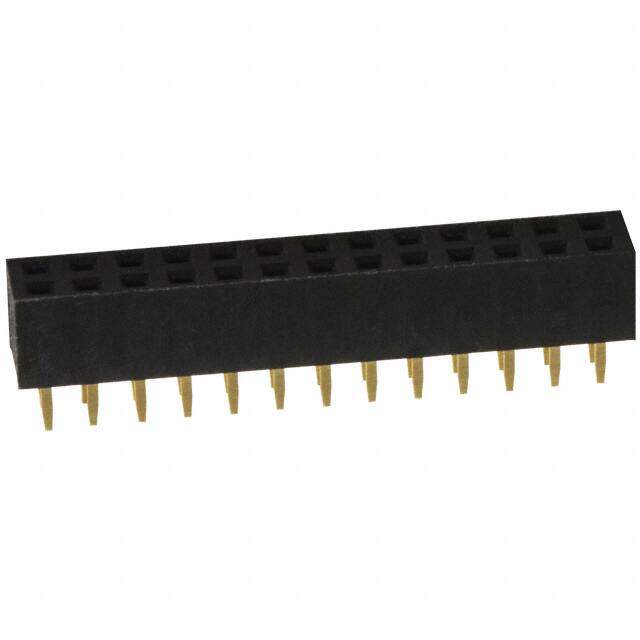

CONN RECEPT 2MM DUAL STR 26POS
PDF
/
Inventory: 5888
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2000
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 26
Number of Rows 2
Gender Female
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Insulation Height 0.169 4.30mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.094 2.40mm
Lead Pitch 2mm
Dimensions
Height 4.3mm
Length 26.5mm
Width 4mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
