PPPN112AFCN
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

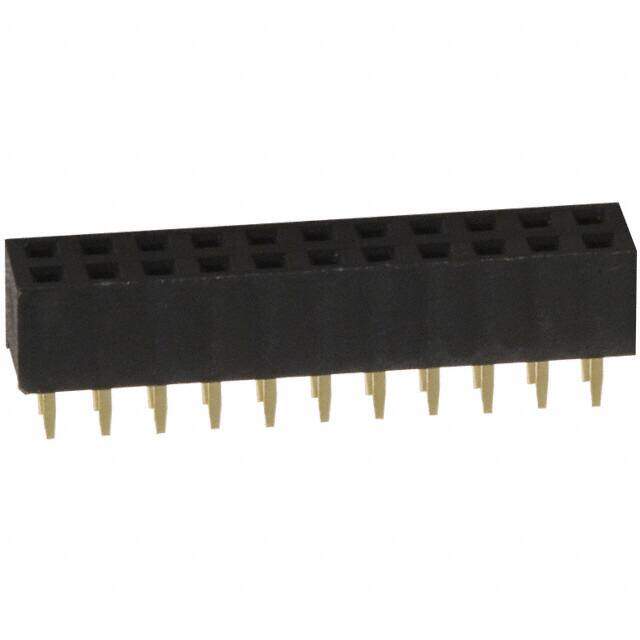

CONN RECEPT 2MM DUAL STR 22POS
PDF
/
Inventory: 7017
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Width 4mm
Length 22.5mm
Height 4.3mm
Technical
Lead Pitch 2mm
Contact Length - Post 0.094 2.40mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.169 4.30mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Female
Number of Rows 2
Number of Positions 22
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Published 2000
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
