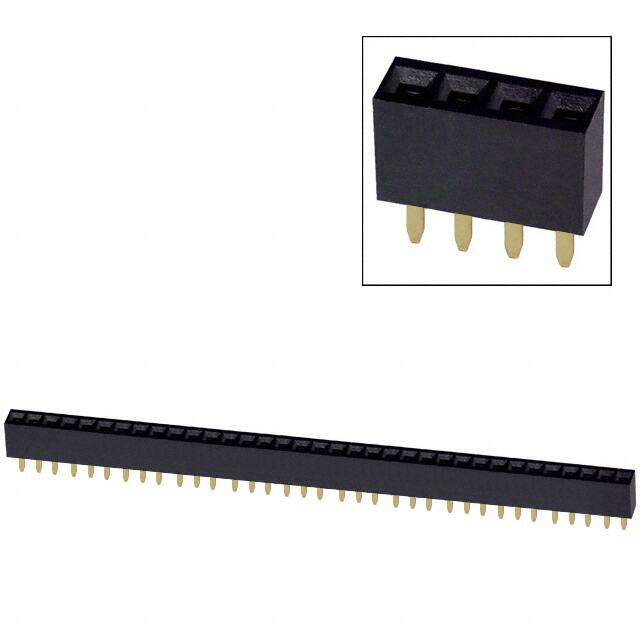

PPPC351LFBN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HEADER FMALE 35POS .1 GOLD
PDF
/
Inventory: 2056
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2008
Pbfree Code yes
Part Status Active
Termination Solder
Connector Type Header
Number of Positions 35
Number of Rows 1
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Terminal Pitch 2.54mm
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.126 3.20mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Body Breadth 0.094 inch
Body Depth 0.334 inch
Polarization Key POLARIZED HOUSING
Dimensions
Height 8.5mm
Length 89.4mm
Width 2.5mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
