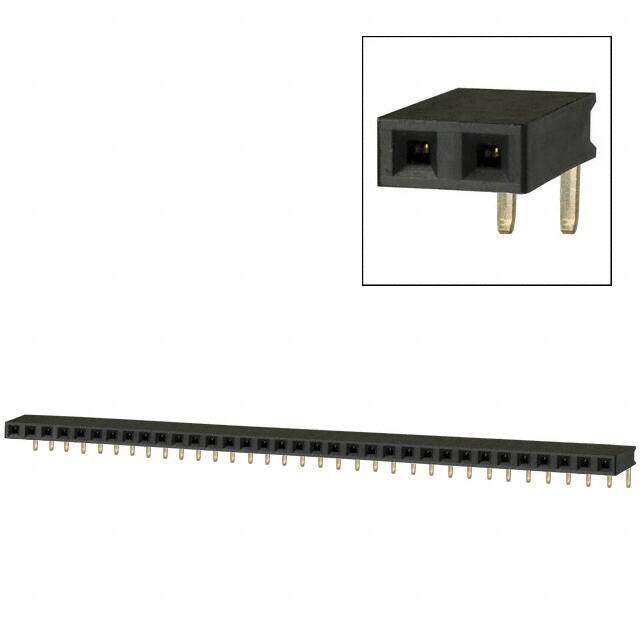

PPPC341LGBN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 34POS 0.1 GOLD PCB R/A
PDF
/
Inventory: 8111
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Width 8.5mm
Length 86.9mm
Height 2.4mm
Technical
Polarization Key POLARIZED HOUSING
Housing Color Black
Body Breadth 0.094 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.124 3.15mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250V
Number of Rows 1
Number of Positions 34
Connector Type Header
Termination Solder
Part Status Active
Pbfree Code yes
Published 2006
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 4 Weeks
