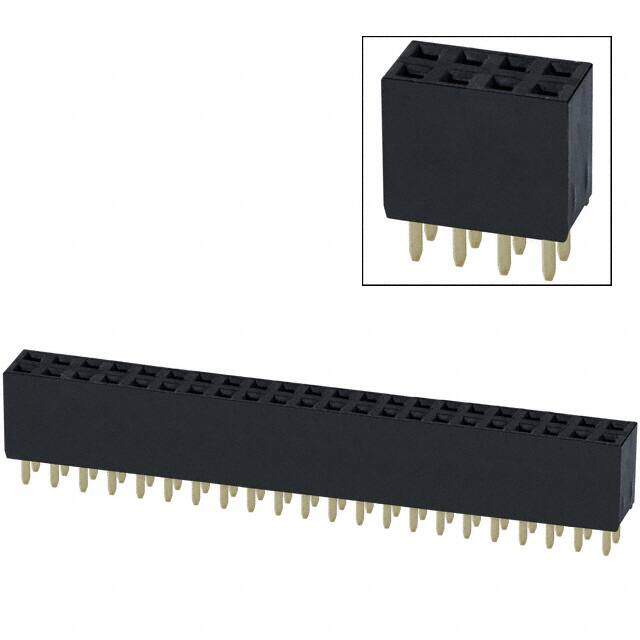

PPPC222LFBN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 44POS 0.1 GOLD PCB
PDF
/
Buying Options
Total Price: USD $2.07
Unit Price: USD $2.068
≥1 USD $2.068
≥10 USD $1.87792
≥100 USD $1.6544
≥500 USD $1.406284
≥1000 USD $1.199475
≥3000 USD $1.181752
Inventory: 1571
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2008
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 44
Number of Rows 2
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.126 3.20mm
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.197 inch
Body Depth 0.334 inch
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Dimensions
Height 8.5mm
Length 56.4mm
Width 5mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
