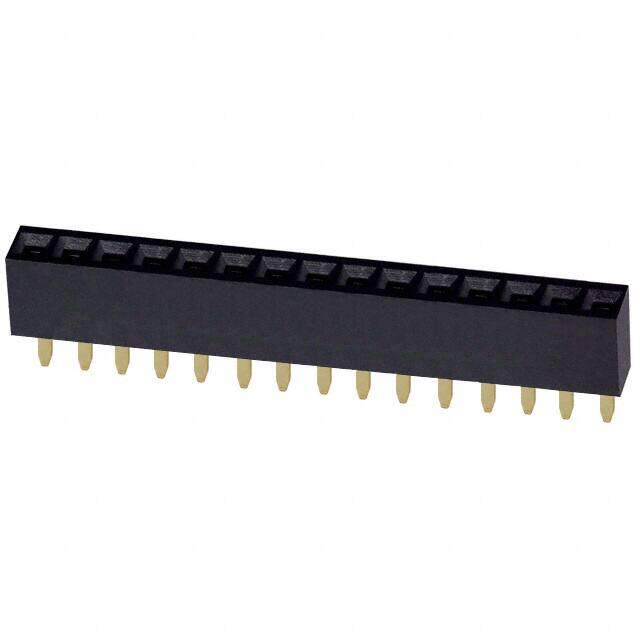

PPPC151LFBN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HEADER FMALE 15POS .1" GOLD
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.76296
≥100 USD $0.6853
≥500 USD $0.560718
≥1000 USD $0.498414
≥3000 USD $0.445016
Inventory: 3461
Minimum: 1
-
+
Technical Details
Technical
Connector Type Header
Number of Positions 15
Number of Rows 1
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Terminal Pitch 2.54mm
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.126 3.20mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Body Breadth 0.094 inch
Body Depth 0.334 inch
Polarization Key POLARIZED HOUSING
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2011
Packaging Tray
Operating Temperature -40°C~105°C
Dimensions
Height 8.5mm
Length 38.6mm
Width 2.5mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 5 Weeks
