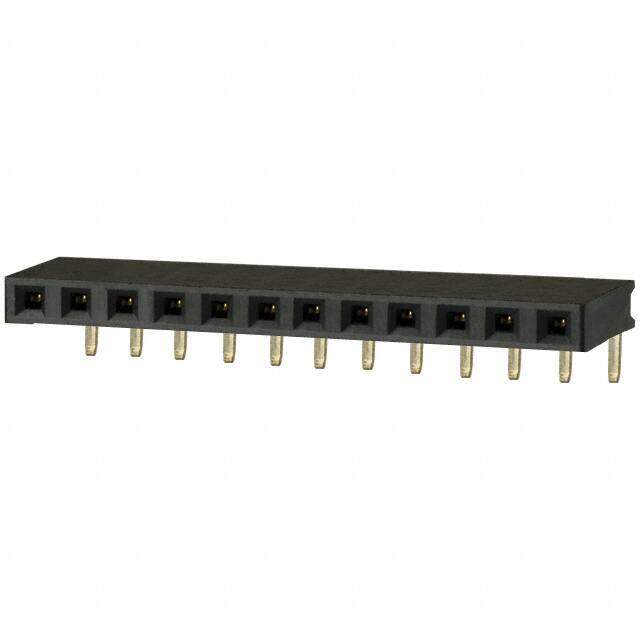

PPPC121LGBN
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 12POS 0.1 GOLD PCB R/A
PDF
/
Inventory: 5717
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2004
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 12
Number of Rows 1
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.124 3.15mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Housing Color Black
Body Depth 0.398 inch
Contact Resistance 20mOhm
Insulation Resistance 5000000000Ohm
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 500VAC V
Dimensions
Height 2.54mm
Length 31mm
Width 8.5mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
