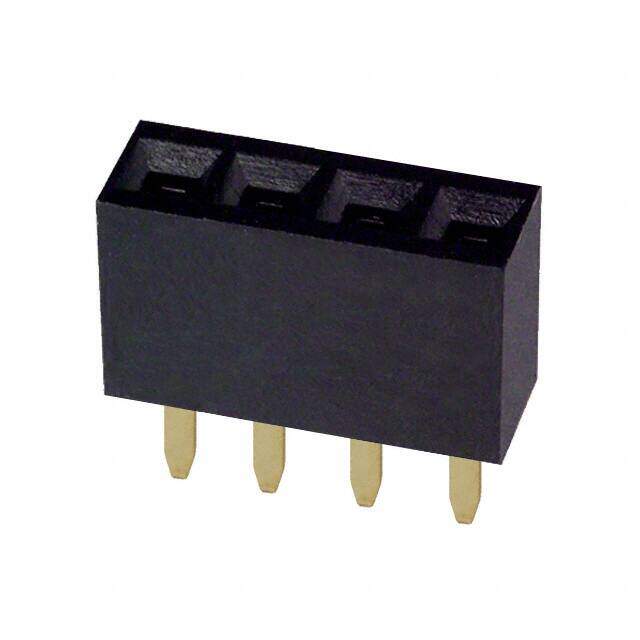

PPPC041LFBN-RC image
Favorite
PPPC041LFBN-RC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN HDR 4POS 0.1 GOLD PCB
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.36168
≥100 USD $0.298408
≥500 USD $0.259459
≥1000 USD $0.214051
≥3000 USD $0.188109
Inventory: 26069
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 5 Weeks

Physical

Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic

Technical

Operating Temperature -40°C~105°C
Packaging Tray
Published 2011
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Number of Rows 1
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.126 3.20mm
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING

Dimensions

Height 8.5mm
Length 10.7mm
Width 2.5mm
Contact Finish Thickness - Mating Flash

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
