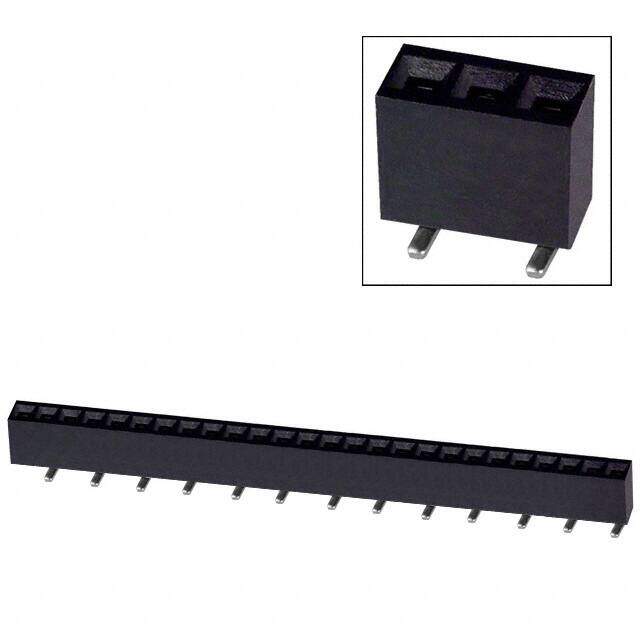

NPTC261KFXC-RC image
Favorite
NPTC261KFXC-RC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN FEMALE 26POS .1 SMD TIN
PDF
/
Inventory: 3183
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
Contact Type Female Socket
Current Rating (Amps) 3A
Total Number of Contacts 26
Terminal Pitch 5.08mm
Insulation Height 0.280 7.10mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Body Breadth 0.098 inch
Housing Color Black
Polarization Key POLARIZED HOUSING
Fastening Type Push-Pull
Voltage - Rated 250V
Number of Rows 1
Number of Positions 26
Connector Type Header, Top or Bottom Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2005
Packaging Tube
Operating Temperature -40°C~105°C

Dimensions

Height 7.1mm
Length 66mm
Width 2.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free

Physical

Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 6 Weeks
